Parts for 4832 and
4832D Flat Flame Burners
Wall Mounted Design
Burner designation
Part Name
4832-2
4832-3
4832-4
4832-5
4832-6
4832-7
Backplate
OB4-0432-1
OB4-0432-1
OB4-0432-2
OB4-0313-1
OB4-0313-2 OB4-0313-3
Body
OC4-0261-1 OC4-0261-1 OC4-0261-1 OC4-0291-1 OC4-0291-1
OC4-0291-1
Body
Gasket
OA4-0262-1 OA4-0262-1 OA4-0262-1 OA4-0333-1 OA4-0333-1
OA4-0333-1
Body Orifi
ce
Ring
— — —
OA4-0334-1
OA4-0334-1
—
Gas Tube Assembly
OA4-0473-1
OA4-0473-1
OA4-0473-1
OB4-0335-1
OB4-0354-1
OA4-0374-1
Main Air Flange
OA4-0433-1
4-1695-1
4-1695-2
4-1695-3
4-1695-4
4-1695-5
Main Air Flange Gasket
4-5371-1
4-5371-1
—
4-5371-2
—
—
Main Air Inlet Spacer
OB4-0353-1
OB4-0353-1
—
OB4-0292-1
—
—
Orifi ce Plate
OA4-0508-1
OA4-0509-1
OA4-0510-1
OA4-0511-1
OA4-0512-1
OA4-0513-1
Orifi ce Plate Gskt (2 reqd)
4-5371-2
4-5371-2
4-5371-2
OA4-0315-2
OA4-0315-2
OA4-0315-2
Observation
Port
8790-0 8790-0 8790-0 8790-0 8790-0
8790-0
Hardwall
Mounting
(square) OC4-0260-3 OC4-0260-3 OC4-0260-3 OC4-0260-4 OC4-0260-4
OC4-0260-4
(round) OC4-1151-1 OC4-1151-1 OC4-1151-1 OC4-1151-2 OC4-1151-2
OC4-1151-2
Fiber Wall Mounting
Fiber Wall Mounting Adapter
4-28356-1
4-28356-1
4-28356-1
4-28356-2
4-28356-2
4-28356-2
Mounting Adapter Gasket
4-28576-1
4-28576-1
4-28576-1
4-28576-1
4-28576-1
4-28576-1
See pages 2 and 3 for roof mountings.
See page 4 for fi ber wall mounting part numbers. For tile and mounting assembly part numbers, see Sheet 4832-5.
Mounting adapters and gaskets listed are new, three-hole design. Old-style, two-hole replacement parts are available. Order kit 4-31154-1
(burner sizes -2, -3, -4 or kit 4-31154-2 (burner sizes -5, -6, -7). Kit includes mounting adapter, gasket and special hardware.
For Refractory Tile part numbers, see Sheet 4832-4

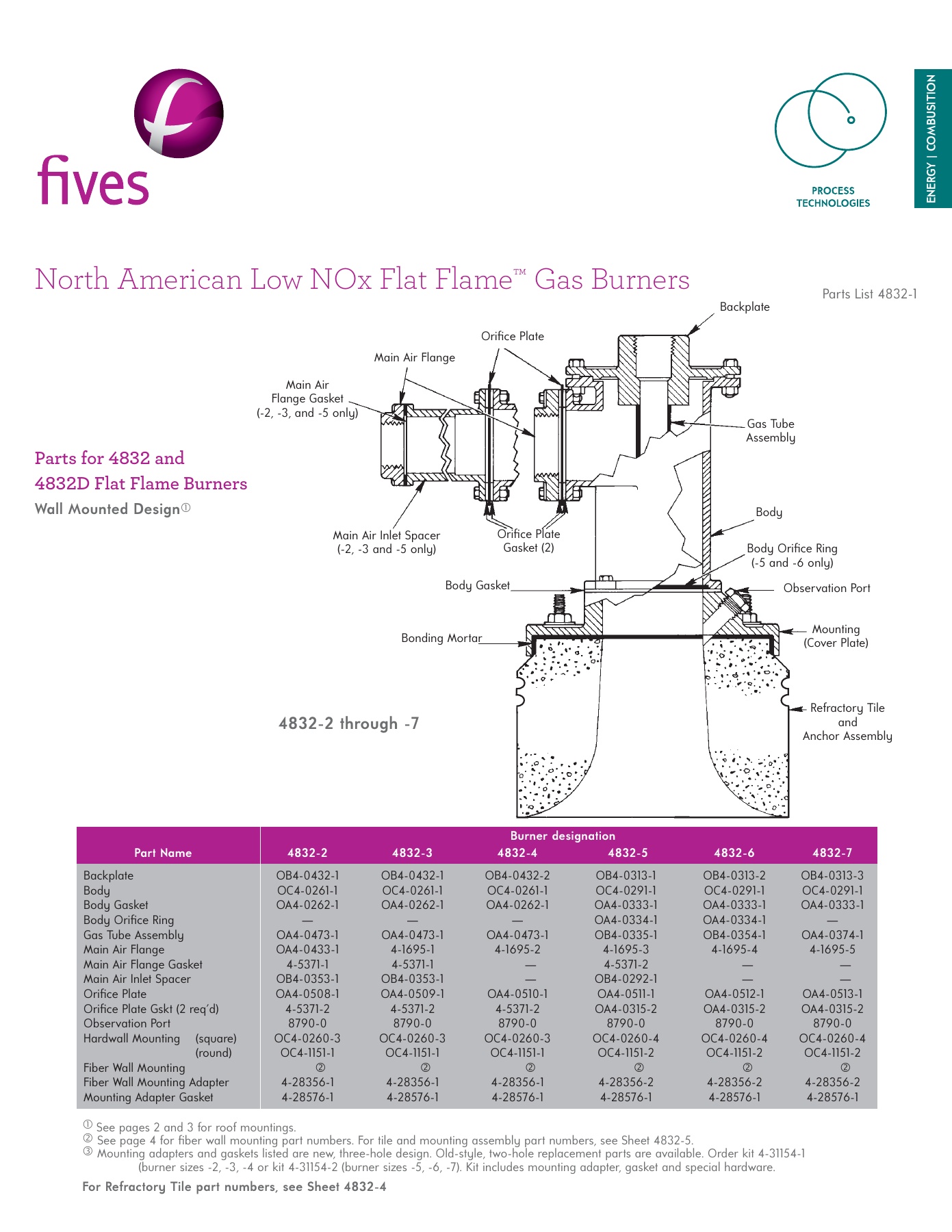

North American Low NOx Flat Flame
™
Gas Burners
Parts List 4832-1
4832-2 through -7
Main Air
Flange Gasket
(-2, -3, and -5 only)
Mounting
(Cover Plate)
Refractory Tile
and
Anchor Assembly
Backplate
Orifi ce Plate
Main Air Flange
Main Air Inlet Spacer
(-2, -3 and -5 only)
Orifi ce Plate
Gasket (2)
Body Gasket
Bonding Mortar
Observation Port
Body Orifi ce Ring
(-5 and -6 only)
Body
Gas Tube
Assembly
