Main Air Capacity,

Required Jet Air

§



Approx. Flame Lengths



Burner

Main Air

scfh at 16 osi

scfh at

with 16 osi Main Air

 designation

pipe

size



Ambient

1000°F

8 osi

16 osi

Ambient

1000°F

 4825-2



4"

2 560

1 420

50

—

2

½



2

 4825-3



4"

3 990

2 370

70

—

2

½



2

 4825-4



4"

6 150

 3 930

145

—

2

½



2

½

 4825-5



4"

10 600

6 450

165

—

2

2

½

 4825-6



4"

16 700

10 050

—

155

5

3

½

 4825-7-A

6"

27 400

17 100

—

175

5

4

 4825-7-B

6"

34 100

21 000

—

275

5

½



4

½

 4825-8-A

6"

44 200

27 900

—

450

5

½



4

½

† Smaller main air piping can be used in most cases. Use standard sizing methods for air temperature and pressure available. Minimum main air pressure

at the burner is 0.2 osi.

§ Ambient temperature jet air is required at all fi ring rates for burner stability and fl ame integrity.

4825 Burners will handle 1200°F preheated combustion air
fi ring car bottom, aluminum melting, forging, glass melting,
heat  treating, and other furnaces where standard 4422 or 4425
Burners would be used if combustion air were not preheated.

Burners provide stable combustion in cold tight furnaces on
 stoichiometric ratio, with large quantities of excess air, or on
 moderately fuel-rich ratios. Air is evenly distributed around the
gas stream,  creating uniform combustion and a well-defi ned
fl ame pattern  throughout a wide turndown range.

Flames are clear to semi-luminous dependent on air tempera-
ture, fi ring rate, and air/fuel ratio.

CONTROL

Mass fl ow control systems with air temperature compensation
 provide the most reliable fuel effi

  ciency.

Fully metered fl ow control arrangements on the cold air side--
such as 7288 Regulators or 8096 Combustion Controllers--are
satisfactory for the vast majority of installations.

Because 4825 Burners are capable of lean starts on cold air,
 standard cross connected regulators can be used on many batch
 operations, as well as on continuous furnaces with constant
preheated air temperatures.

JET AIR

The burner uses a small amount of ambient air to insure good
fl ame thrust at low fi re. Some burners lose all discharge  velocity
on  applications that require wide turndown. Jet air on the 4825
solves that problem. Additionally, jet air cools internal parts
and prevents the cracking of fuel at low fi re caused by hot
 combustion air.

Burner sizes -2 thru -5 require jet air at 8 osi pressure while
sizes  -6 thru -8-A require 16 osi. Regardless of fi ring rate, jet air
fl ow is constant at about 2 percent of high-fi re air rate (ambient
 temperature) for -5 and smaller burners, and 1 percent for -6 and
larger burners.

RECUPERATORS

4825 Burners are compatible with almost all recuperators,
 including North American 8483, 8485, and 8486 units.

IGNITION/FLAME SUPERVISION

A 4011-12 pilot set is recommended for individual burner ignition.
When multiple burners share a single pilot pre-mix header, a
4021-12 pilot tip per burner with an appropriately sized air/gas
mixer is recommended.

For higher ambient temperatures specify a Honeywell C7035A
UV with an 8837-F Adapter, which includes a Honeywell heat
block #136733 (R130-5849) and a

¼

" fpt for 100 cfh cooling air.

CONSTRUCTION

Heat resistant cast iron burner bodies including air connections
are lined internally with vacuum-formed ceramic fi ber  insulation.
Burner tiles are 3000°F castable with or without self- supporting
construction and are easily replaceable in the fi eld. Burner air
tubes, of high temperature alloy, are protected by a refractory
radiation shield.

Bulletin 4825

page 2

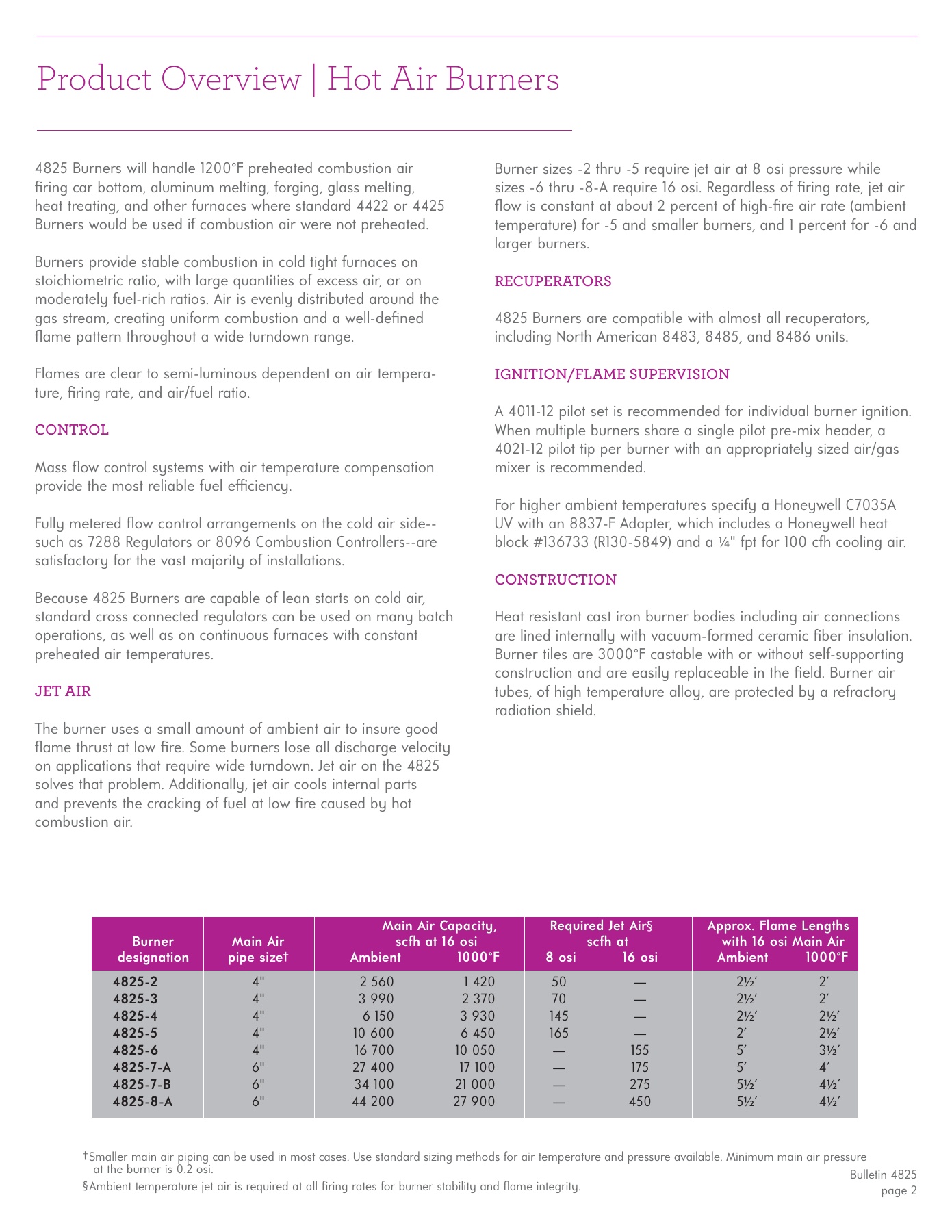

Product Overview | Hot Air Burners
