Item Description

4762-4

4762-6

4762-8



  1 Hi-Capacity

Burner

4762-4

4762-6

4762-8

  2 Butterfl y Air Valve

1122-4

1122-6

1122-8

  3

Limiting Gas Valve

    —

    —

1807-6

  4

Ratio Gas Regulator

7218-2

7218-4

7218-6

  5 Bleeder

8654

8654

8654

  6

Manual Gas Valve

1824K-2

1824K-2

1824K-6

  7

Pilot tip with plug

4027-01-T2425

4027-01-T2425

4027-01-T2425

  8 Pilot

mixer

4031

4031

4031

  9

Pilot air valve

1821-0

1821-0

1821-0

 10

Pilot gas regulator

7350-01

7350-01

7350-01

 11

Pilot gas valve

1821-02

1821-02

1821-02

 12

Pilot solenoid valve

1486-02

1486-02

1486-02

 13 Blower,

Motor

&

 Starter

2308-14/1-.75

2308-17/1-1

2308-24/1-2

 14 1518

Valve†

1518-2

1518-4

1518-6

 15 Ignition

transformer

4065-6N1-6A

4065-6N1-6A  4065-6NI-6A

 16 Ignition

cable

4085-5

4085-5

4085-5

Sheet 4762-2

Page 3

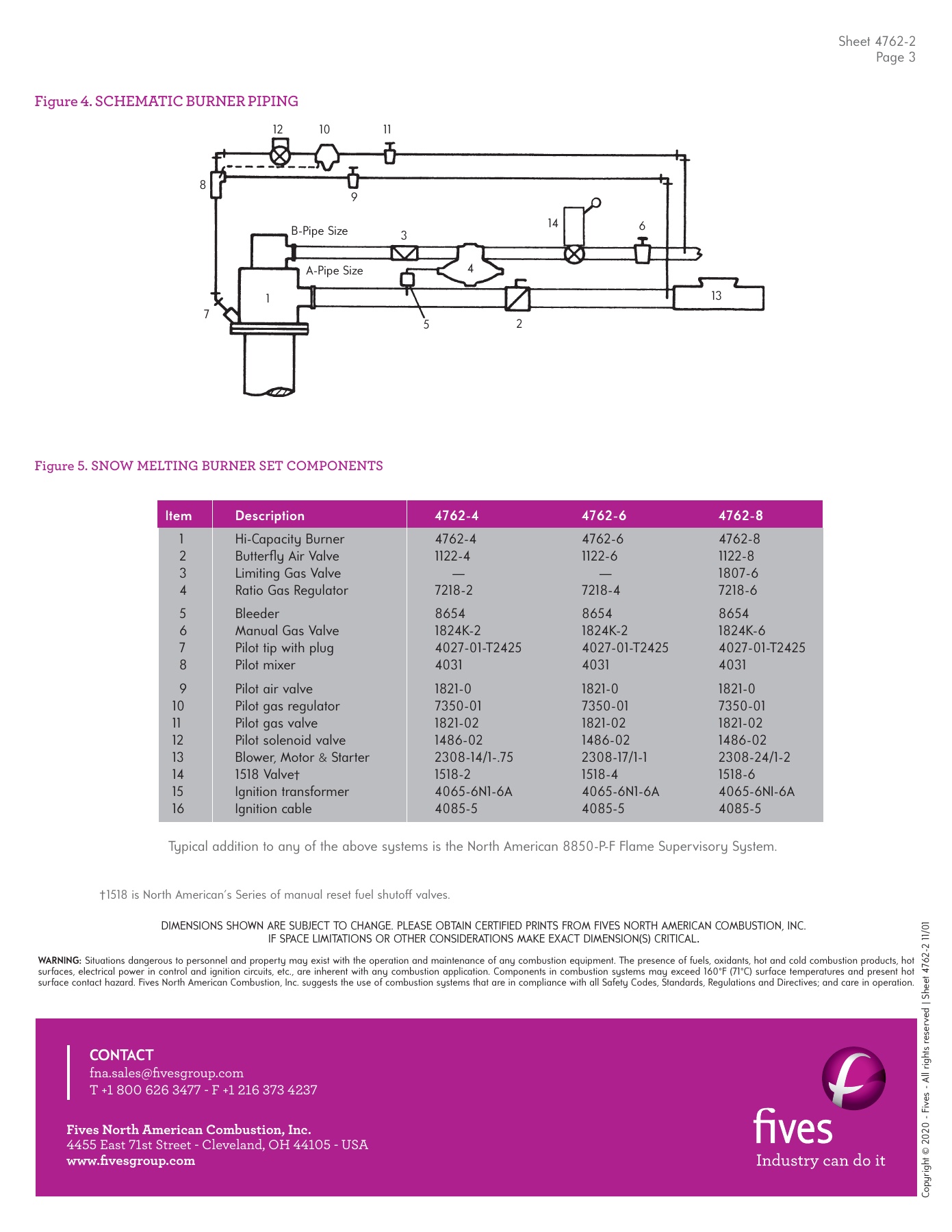

Figure 4. SCHEMATIC BURNER PIPING





Typical addition to any of the above systems is the North American 8850-P-F Flame Supervisory System.

 1518 is North Americans Series of manual reset fuel shutoff  valves.

8

12

Figure 5. SNOW MELTING BURNER SET COMPONENTS

10

11

9

3

4

B-Pipe Size

1

7

5

2

 14

6

13

A-Pipe Size

Cop

yr

igh

t © 2020 - F

iv

es - All r

igh

ts r

eser

ved | Shee

t 4762-2 11/01

WARNING:

Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot

surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.

DIMENSIONS SHOWN ARE SUBJECT TO CHANGE. PLEASE OBTAIN CERTIFIED PRINTS FROM FIVES NORTH AMERICAN COMBUSTION, INC.

IF SPACE LIMITATIONS OR OTHER CONSIDERATIONS MAKE EXACT DIMENSION(S) CRITICAL

.

Fives North American Combustion, Inc.

4455 East 71st Street - Cleveland, OH 44105 - USA

www.fi vesgroup.com

CONTACT

fna.sales@fi vesgroup.com
T +1 800 626 3477 - F +1 216 373 4237
