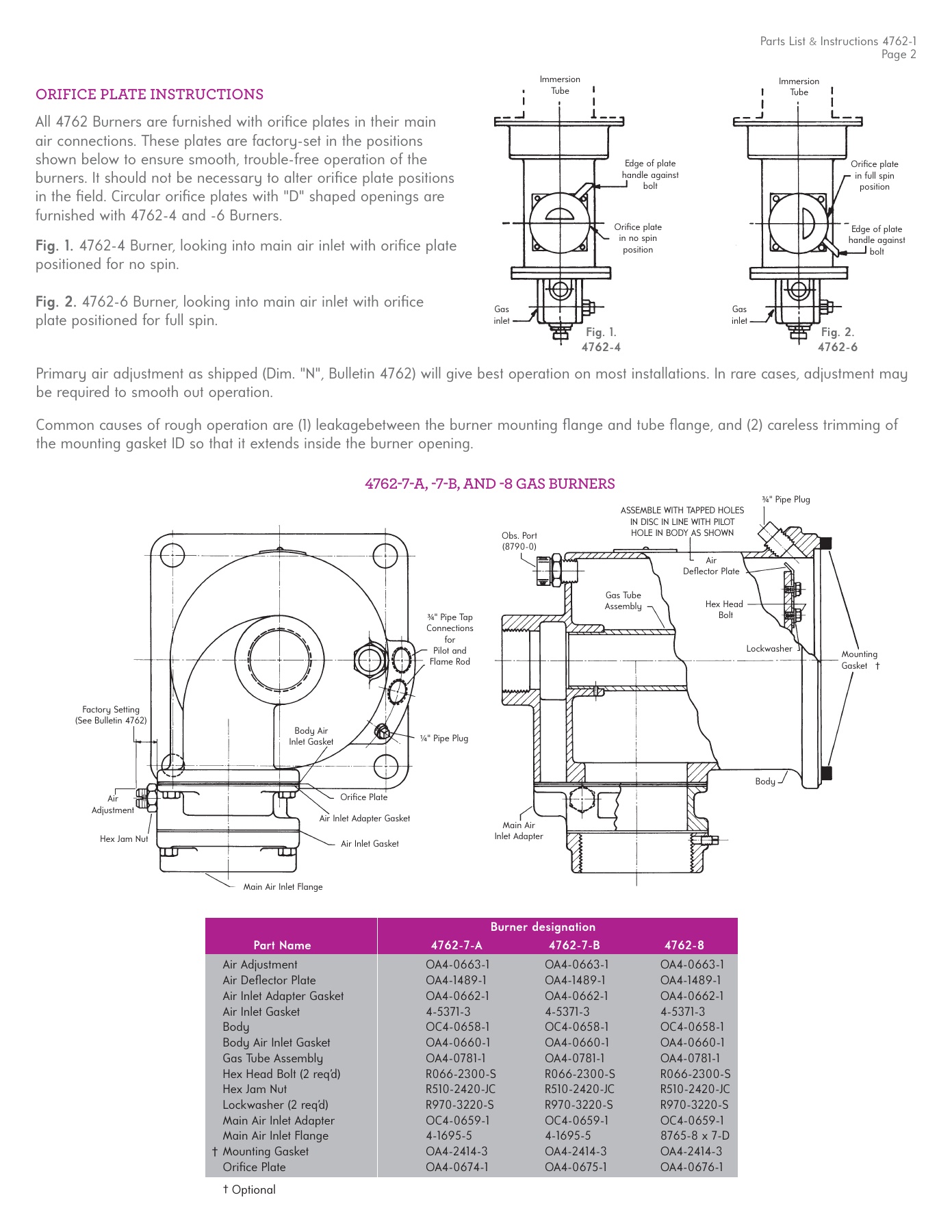

ORIFICE PLATE INSTRUCTIONS

Primary air adjustment as shipped (Dim. "N", Bulletin 4762) will give best operation on most installations. In rare cases, adjustment may
be required to smooth out operation.

Common causes of rough operation are (1) leakagebetween the burner mounting fl ange and tube fl ange, and (2) careless trimming of
the mounting gasket ID so that it extends inside the burner opening.



Fig. 1.

4762-4 Burner, looking into main air inlet with orifi ce plate

positioned for no spin.

Fig. 2.

 4762-6 Burner, looking into main air inlet with orifi ce

plate positioned for full spin.

All 4762 Burners are furnished with orifi ce plates in their main
air connections. These plates are factory-set in the positions
shown below to ensure smooth, trouble-free operation of the
burners. It should not be necessary to alter orifi ce plate positions
in the fi eld. Circular orifi ce plates with "D" shaped openings are
furnished with 4762-4 and -6 Burners.





Immersion

Tube

Immersion

Tube

Edge of plate

handle against

bolt

Edge of plate

handle against

bolt

Orifi ce plate

in no spin

position

Orifi ce plate

in full spin

position

Gas

inlet

Gas

inlet

Fig. 1.

4762-4

Fig. 2.

4762-6

4762-7-A, -7-B, AND -8 GAS BURNERS

Factory Setting

(See Bulletin 4762)

¾

" Pipe Tap

Connections

for

Pilot and

Flame Rod

Air

Adjustment

Hex Jam Nut

Main Air Inlet Flange

Air Inlet Gasket

Air Inlet Adapter Gasket

Orifi ce Plate

Body Air

Inlet Gasket

¼

" Pipe Plug

Main Air

Inlet Adapter

Obs. Port

(8790-0)

Gas Tube

Assembly

ASSEMBLE WITH TAPPED HOLES

IN DISC IN LINE WITH PILOT

HOLE IN BODY AS SHOWN

Air

Defl ector Plate

¾

" Pipe Plug

Hex Head

 Bolt

Mounting
Gasket

Lockwasher

Body

Air Adjustment

OA4-0663-1

OA4-0663-1

OA4-0663-1

Air Defl ector Plate

OA4-1489-1

OA4-1489-1

OA4-1489-1

Air Inlet Adapter Gasket

OA4-0662-1

OA4-0662-1

OA4-0662-1

Air Inlet Gasket

4-5371-3

4-5371-3

4-5371-3

Body OC4-0658-1

OC4-0658-1

OC4-0658-1



Body Air Inlet Gasket

OA4-0660-1

OA4-0660-1

OA4-0660-1

Gas Tube Assembly

OA4-0781-1

OA4-0781-1

OA4-0781-1

Hex Head Bolt (2 req’d)

R066-2300-S

R066-2300-S

R066-2300-S

Hex Jam Nut

R510-2420-JC

R510-2420-JC

R510-2420-JC

Lockwasher (2 req’d)

R970-3220-S

R970-3220-S

R970-3220-S

Main Air Inlet Adapter

OC4-0659-1

OC4-0659-1

OC4-0659-1

Main Air Inlet Flange

4-1695-5

4-1695-5

8765-8 x 7-D

Mounting Gasket

OA4-2414-3

OA4-2414-3

OA4-2414-3

Orifi ce Plate

OA4-0674-1

OA4-0675-1

OA4-0676-1

Burner designation

Part Name

            4762-7-A

           4762-7-B               4762-8

Optional

Parts List

&

 Instructions 4762-1

Page 2
