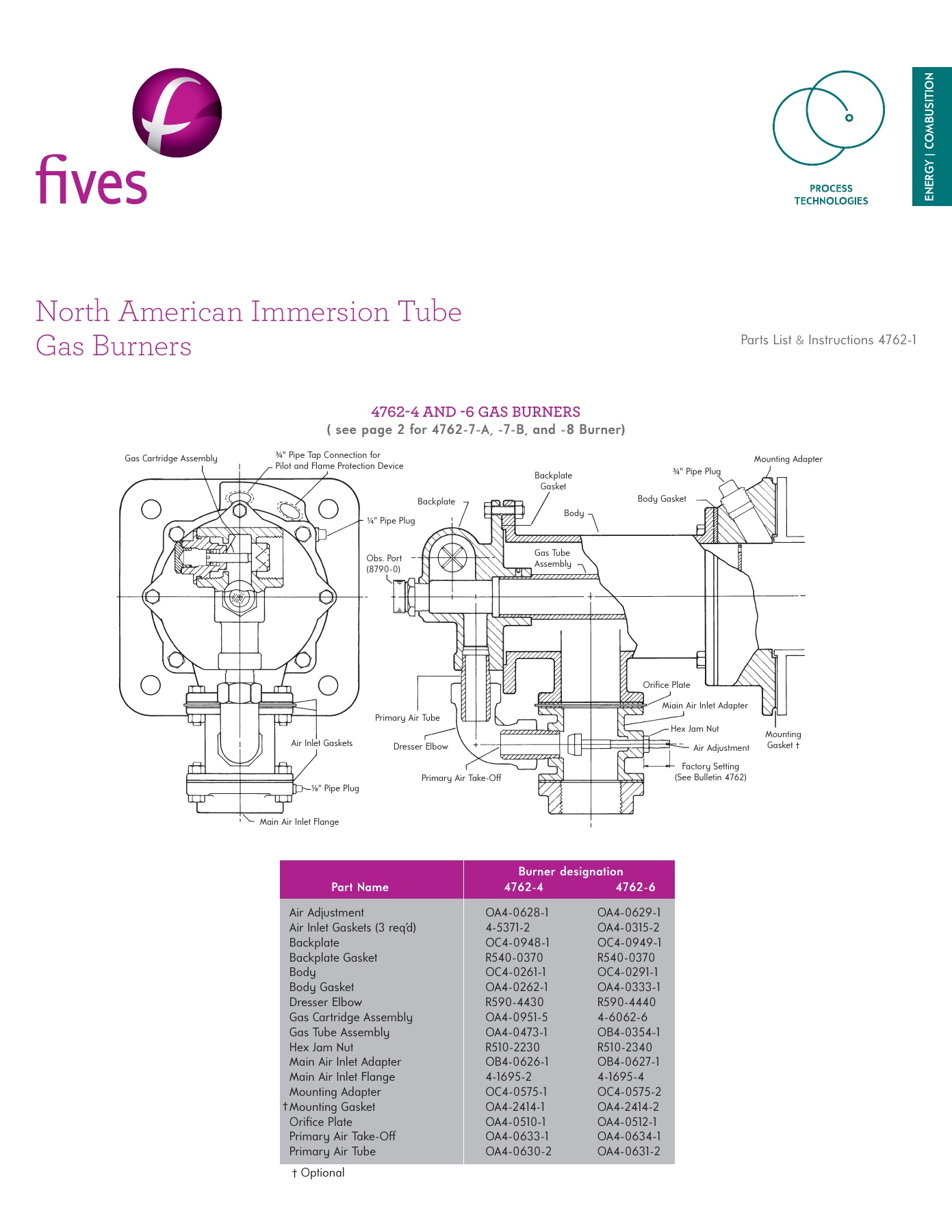

North American Immersion Tube
Gas Burners
Parts List
&
Instructions 4762-1
4762-4 AND -6 GAS BURNERS
( see page 2 for 4762-7-A, -7-B, and -8 Burner)
Gas Cartridge Assembly
¾
" Pipe Tap Connection for
Pilot and Flame Protection Device
¼
" Pipe Plug
Backplate
Obs. Port
(8790-0)
Body
Mounting Adapter
¾
" Pipe Plug
Body Gasket
Gas Tube
Assembly
Air Inlet Gaskets
1⁄8
" Pipe Plug
Main Air Inlet Flange
Primary Air Tube
Dresser Elbow
Primary Air Take-Off
Orifi ce Plate
Miain Air Inlet Adapter
Hex Jam Nut
Air Adjustment
Factory Setting
(See Bulletin 4762)
Mounting
Gasket †
Backplate
Gasket
Burner designation
Part Name
4762-4
4762-6
Air Adjustment
OA4-0628-1
OA4-0629-1
Air Inlet Gaskets (3 req’d)
4-5371-2
OA4-0315-2
Backplate OC4-0948-1
OC4-0949-1
Backplate Gasket
R540-0370
R540-0370
Body OC4-0261-1
OC4-0291-1
Body Gasket
OA4-0262-1
OA4-0333-1
Dresser Elbow
R590-4430
R590-4440
Gas Cartridge Assembly
OA4-0951-5
4-6062-6
Gas Tube Assembly
OA4-0473-1
OB4-0354-1
Hex Jam Nut
R510-2230
R510-2340
Main Air Inlet Adapter
OB4-0626-1
OB4-0627-1
Main Air Inlet Flange
4-1695-2
4-1695-4
Mounting Adapter
OC4-0575-1
OC4-0575-2
Mounting Gasket
OA4-2414-1
OA4-2414-2
Orifi ce Plate
OA4-0510-1
OA4-0512-1
Primary Air Take-Off
OA4-0633-1
OA4-0634-1
Primary Air Tube
OA4-0630-2
OA4-0631-2
† Optional
†
