REVERSE ANNULUS COMBUSTION

Th

e 4748 is a unique low NOx, high effi

  ciency single ended

radiant tube burner. Unlike conventional SERT burners,
combustion occurs in the annulus formed between the outer
radiant tube and the inner fl ue tube. Combustion gases then
turn 180° to reverse through the inner fl ue tube to the integral
high effi

  ciency heat exchanger having a return gas fl ow path

to conventional SERT burners; hence the name Reverse Annulus
Single Ended Radiant Tube burner, or "RASERT."

The 4748 RASERT has a number of advantages over
conventional SERTs. Since the fl ame is in direct contact with
the inside surface of the radiant tube, heat is transferred to
the furnace more effi

  ciently. The fl ame propagates outside the

combustion tube rather than inside, resulting in less thermal
stress on the combustion tube. RASERT is a patented design
(#6,321,743) of the Gas Technology Institute (GTI) developed in
collaboration with North American.

BURNER CAPACITY

The 4748-650 is available in one size. The minimum radiant
tube inside diameter for this burner is noted in Table 1 below.

Air capacities will be higher when starting the burner in a
cold environment. Air fl ow will decrease as fl ue gases and
tube temperatures increase. See page 3 for a detailed graph
showing fl ue gas oxygen levels

vs.

radiant tube temperature.

Furnace temperatures may cause slight variations in burner
capacity. Page 4 has further information on radiant tube sizing











Radiant

Tube

 Burner









inside

diameter

designation

1 osi

4 osi

9 osi

16 osi

inches



4748-650

425

 850

1300

1750

6.50 - 7.38

Air Capacity (scfh at 1650 F furnace temperature)

with burner air supply pressure of

Table 1

Table 1



Low NOx, CO and CO 

2

 emissions achieved by effi  cient



staged combustion, and integral fl ue gas recirculation



Compatible with many existing control systems including



simple cross-connected regulator systems



Built-in air/fuel metering and gas limiting orifi ce valve mean



easier installation and commissioning



Direct spark ignition

THE 4748 RASERT

 ADVANTAGE:

FLUE OUTLET

FUEL IN

COMBUSTION AIR IN

PRIMAR

Y AIR / FUEL

RETURNED FLUE PRODUCTS

ANNULAR COMBUSTION ZONE

SECONDARY AIR

Bulletin 4748

Page 2

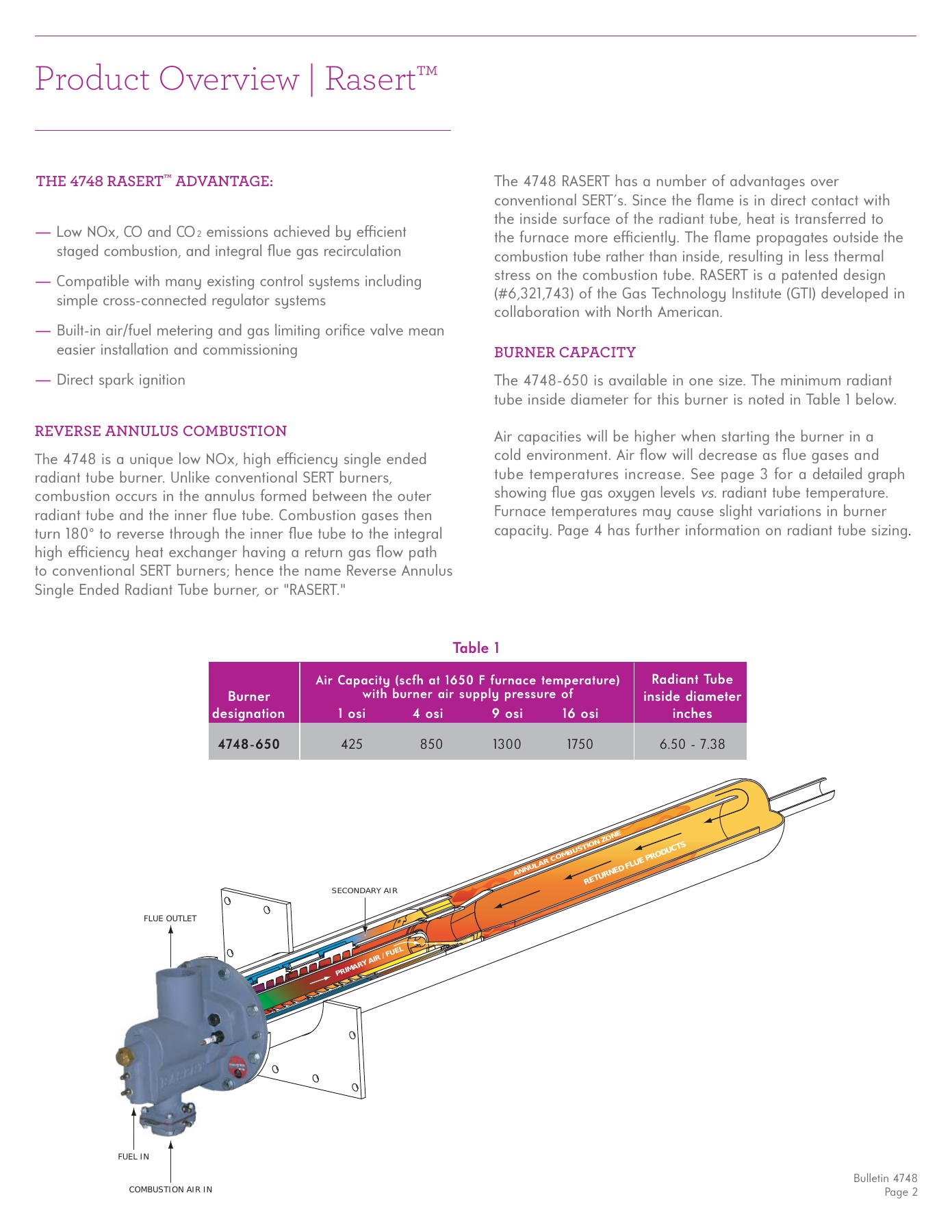

Product Overview | Rasert™
