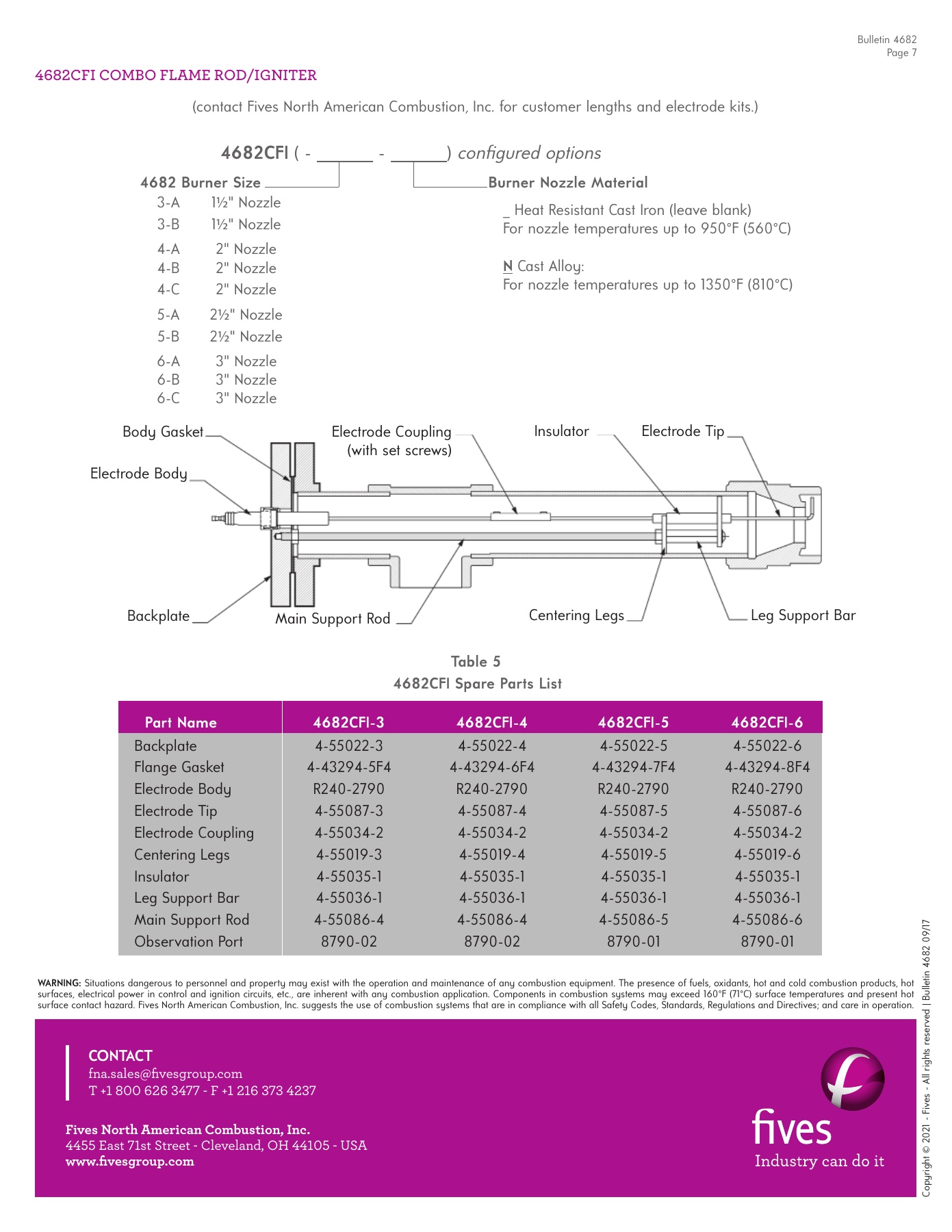

4682CFI COMBO FLAME ROD/IGNITER

(contact Fives North American Combustion, Inc. for customer lengths and electrode kits.)

4682CFI

 ( -            -           )

confi gured options

4682 Burner Size

 3-A  1

½

" Nozzle

 3-B  1

½

" Nozzle

 4-A

2"

Nozzle

 4-B

2"

Nozzle

 4-C

2"

Nozzle

 5-A  2

½

" Nozzle

 5-B  2

½

" Nozzle

 6-A

3"

Nozzle

 6-B

3"

Nozzle

 6-C

3"

Nozzle

Burner Nozzle Material

_ Heat Resistant Cast Iron (leave blank)
For nozzle temperatures up to 950°F (560°C)

N

 Cast Alloy:

For nozzle temperatures up to 1350°F (810°C)

WARNING:

Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot

surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.

Body Gasket

Electrode Body

Backplate

Main Support Rod

Electrode Coupling

(with set screws)

Insulator

Centering Legs

Electrode Tip

Leg Support Bar

Table 5

4682CFI Spare Parts List

 Part

Name

4682CFI-3

4682CFI-4

4682CFI-5

4682CFI-6

 Backplate

4-55022-3

4-55022-4

4-55022-5

4-55022-6

 Flange Gasket

4-43294-5F4

4-43294-6F4

4-43294-7F4

4-43294-8F4

 Electrode Body

R240-2790

R240-2790

R240-2790

R240-2790

 Electrode Tip

4-55087-3

4-55087-4

4-55087-5

4-55087-6

 Electrode Coupling

4-55034-2

4-55034-2

4-55034-2

4-55034-2

 Centering Legs

4-55019-3

4-55019-4

4-55019-5

4-55019-6

 Insulator

4-55035-1

4-55035-1

4-55035-1

4-55035-1

  Leg Support Bar

4-55036-1

4-55036-1

4-55036-1

4-55036-1

  Main Support Rod

4-55086-4

4-55086-4

4-55086-5

4-55086-6

 Observation Port

8790-02

8790-02

8790-01

8790-01



Bulletin 4682

Page 7
