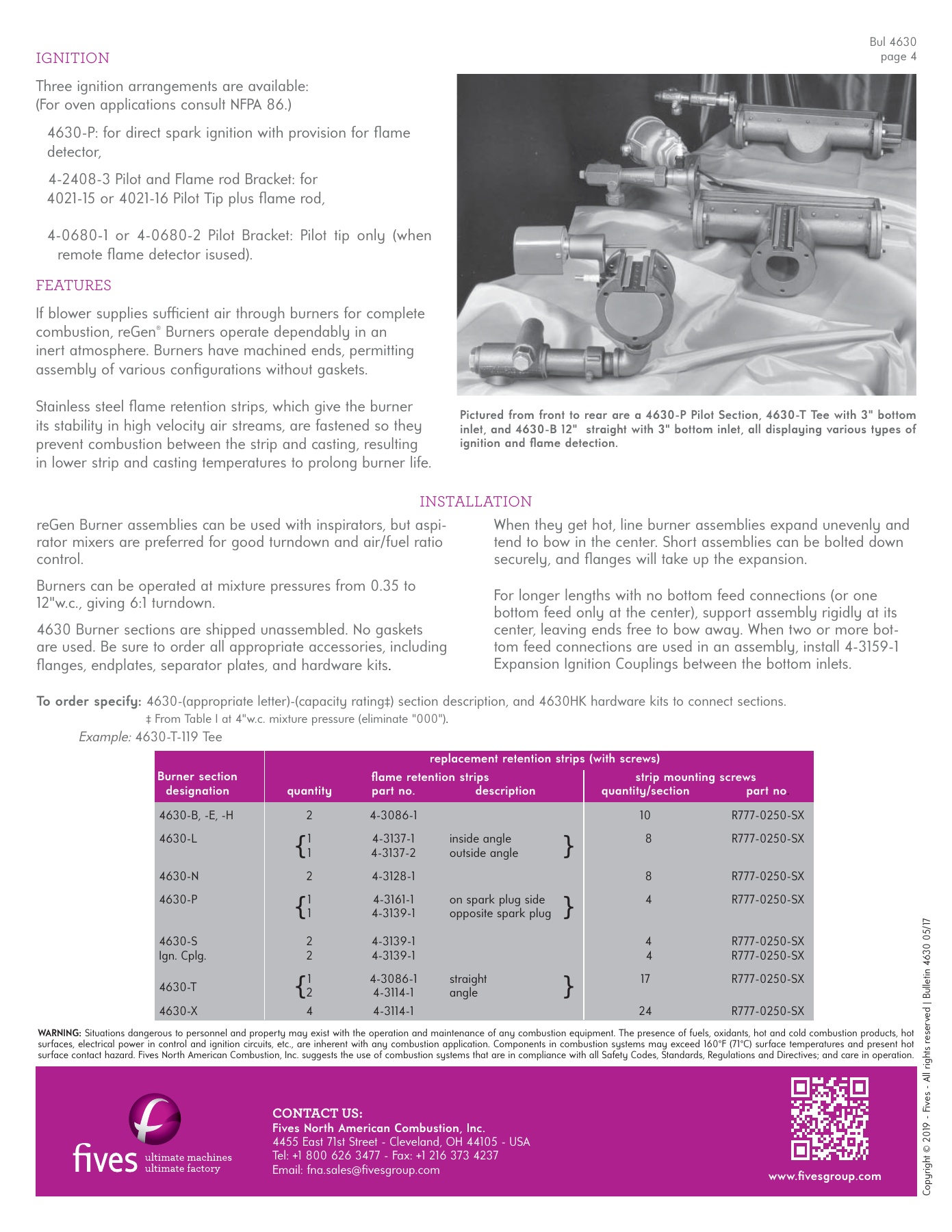

Burner
section
designation
quantity
part no.
description
quantity/section
part no
.
4630-B, -E, -H
2
4-3086-1
10
R777-0250-SX
4630-L
1
4-3137-1
inside
angle
8 R777-0250-SX
1
4-3137-2
outside
angle
4630-N
2
4-3128-1
8 R777-0250-SX
4630-P
1
4-3161-1
on spark plug side
4
R777-0250-SX
1
4-3139-1
opposite spark plug
4630-S
2
4-3139-1
4 R777-0250-SX
Ign. Cplg.
2
4-3139-1
4
R777-0250-SX
1
4-3086-1
straight
17 R777-0250-SX
4630-T 2
4-3114-1
angle
4630-X
4
4-3114-1
24 R777-0250-SX
IGNITION
Three ignition arrangements are available:
(For oven applications consult NFPA 86.)
4630-P: for direct spark ignition with provision for fl ame
detector,
4-2408-3 Pilot and Flame rod Bracket: for
4021-15 or 4021-16 Pilot Tip plus fl ame rod,
4-0680-1 or 4-0680-2 Pilot Bracket: Pilot tip only (when
remote fl ame detector isused).
FEATURES
If blower supplies suffi
cient air through burners for complete
combustion, reGen
®
Burners operate dependably in an
inert atmosphere. Burners have machined ends, permitting
assembly of various confi gurations without gaskets.
Stainless steel fl ame retention strips, which give the burner
its stability in high velocity air streams, are fastened so they
prevent combustion between the strip and casting, resulting
in lower strip and casting temperatures to prolong burner life.
Pictured from front to rear are a 4630-P Pilot Section, 4630-T Tee with 3" bottom
inlet, and 4630-B 12" straight with 3" bottom inlet, all displaying various types of
ignition and fl ame detection.
replacement retention strips (with screws)
fl ame retention strips
strip mounting screws
INSTALLATION
reGen Burner assemblies can be used with inspirators, but aspi-
rator mixers are preferred for good turndown and air/fuel ratio
control.
Burners can be operated at mixture pressures from 0.35 to
12"w.c., giving 6:1 turndown.
4630 Burner sections are shipped unassembled. No gaskets
are used. Be sure to order all appropriate accessories, including
fl anges, endplates, separator plates, and hardware kits
.
When they get hot, line burner assemblies expand unevenly and
tend to bow in the center. Short assemblies can be bolted down
securely, and fl anges will take up the expansion.
For longer lengths with no bottom feed connections (or one
bottom feed only at the center), support assembly rigidly at its
center, leaving ends free to bow away. When two or more bot-
tom feed connections are used in an assembly, install 4-3159-1
Expansion Ignition Couplings between the bottom inlets.
To order specify:
4630-(appropriate letter)-(capacity rating‡) section description, and 4630HK hardware kits to connect sections.
‡ From Table I at 4"w.c. mixture pressure (eliminate "000")
.
Example:
4630-T-119 Tee
{
{
{
{
{
{
Bul 4630
page 4
