E
F
C
D
B
A
-NPT
4622
E
F
D
C
B
0.661
1° 47
C
D
B
A
-NPT
4622-02-P
4624
E
Blast Tip
dimensions in inches
wt,
designation A
B
C
D
E
F oz
4622-02
3⁄8 3⁄8 7⁄8 1¼
11⁄8 1 2
4622-01
½ 7⁄16 7⁄8 15⁄16 15⁄16 13⁄16 2½
4624-02
3⁄8 3⁄8 7⁄8 1¼ 11⁄8 -
3
4624-01
½ 7⁄16
7/8
15⁄16 1¼ -
3½
4622-02-P
- 3⁄8 7⁄8 1¼ 11⁄8 1
2
mixture pressure, "w.c.
Burner designation
0.5
1
4
5
6
8
10
4622-02, -02-P, 4624-02
7 000 10 000
20 000
22 000 24 000 28 000 31 000
4622-01, 4624-01
11 000 15 000
30 000
34 000 37 000 43 000 48 000
Cop
yr
igh
t © 2020 - F
iv
es - All r
igh
ts r
eser
ved | Shee
t 4622/4624 11/00
WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.

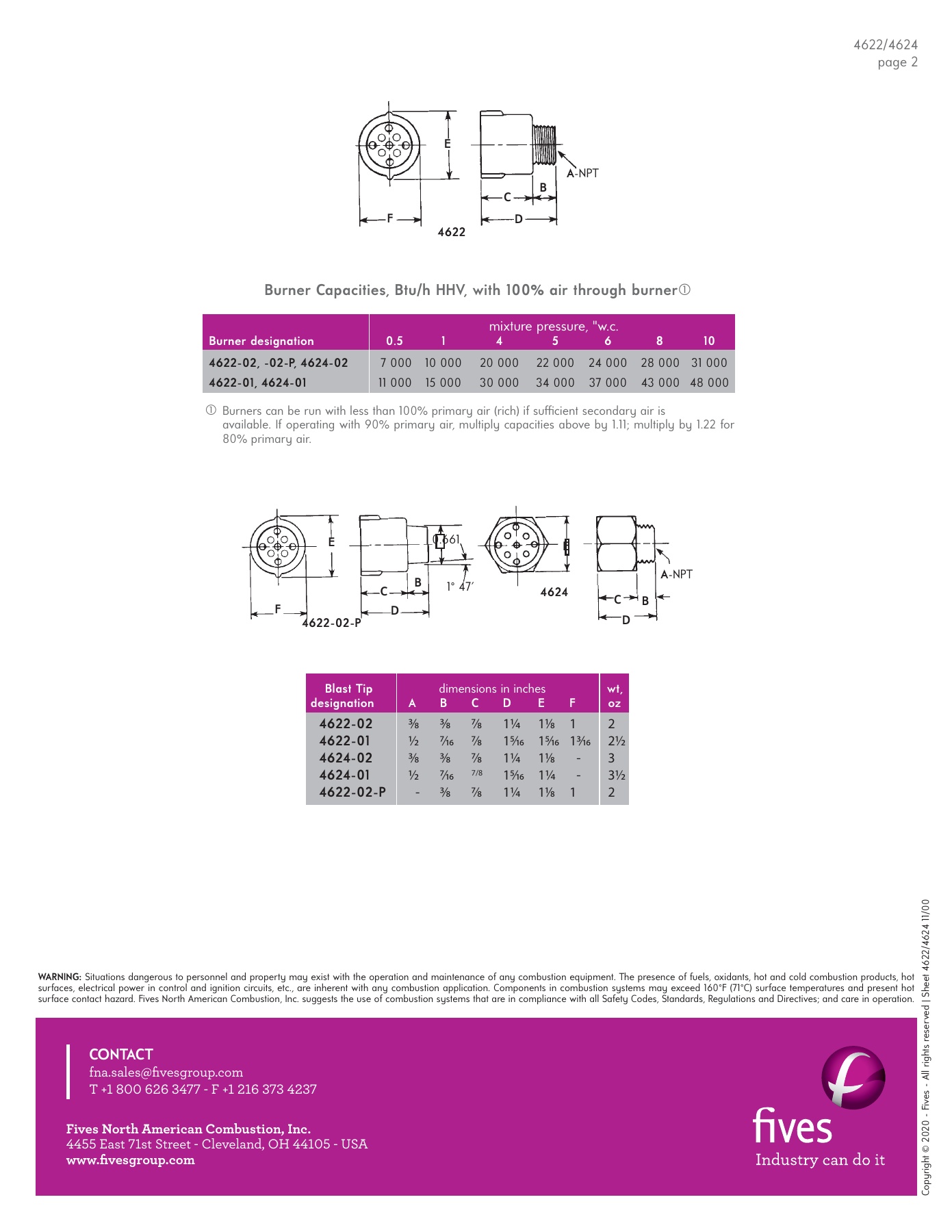

4622/4624
page 2
Burners can be run with less than 100% primary air (rich) if suffi
cient secondary air is
available. If operating with 90% primary air, multiply capacities above by 1.11; multiply by 1.22 for
80% primary air.
Burner Capacities, Btu/h HHV, with 100% air through burner
