ORDERING INFORMATION

4611

  -

Y

-

    

Burner Series

Nozzle Size Code

Quantity of Nozzles
Nozzle material is 340 SST

Example:

4611-0810 Forehearth burner manifold with ten #08 nozzles--with R =
(manifold centerline to nozzle packing face dimension).

Options:

Burner block adjustable sealing collar – see part #4610SC on Sheet 4610-1.



Manifold mounting system is available – see part #4610MB on Sheet
4610-1.

Additional Information:

Use North Americans unique, high effi

  ciency system design that incorporates

 –

effi

  cient low pressure drop design for low horsepower, small fans



–  linear control



  using linear operating valves - see Bulletin 1008/1004 or fan VFD -



    see Bulletin 2775



–  high fl ow rate mixers - see Bulletin 3065



–  straight manifold assembly is available - see Bulletin 4610



–  see Sheet 4610-1 for complete parts list



–  how 4611 burner assembly is shipped:



  (X) quantity of nozzle assemblies consisting of (1) each: nozzle, collar,
    pipe extension, cast elbow, and cleanout plug assembled as a unit.



  (1) manifold for (X) quantity of nozzle assemblies with pipe plugs in
    pressure taps



  (X) quantity each of manifold and nozzle gaskets

C

omplete solution–

Thats what we provide.....contact your Fives specialist to help you fi nd your system solution.

See Bulletin 4610 for location of these items to be specifi ed:



R =  manifold centerline to packing face in a standard range of 4" to

  12"

in

½

" increments.



A = inside dimension manifold diameter (x-axis)



B = inside dimension manifold radius (y-axis)



C = inside radius or curve radius

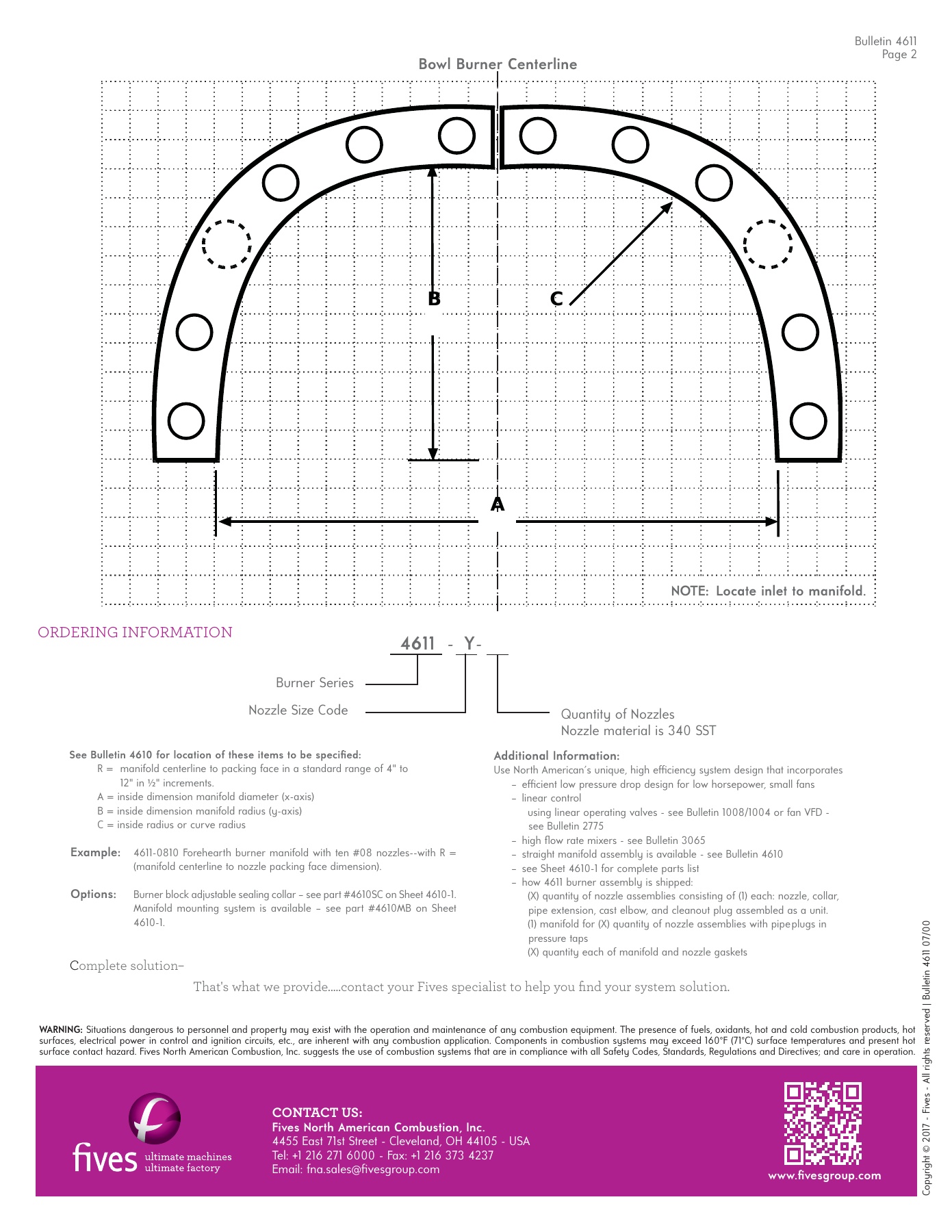

Bulletin 4611

Page 2

Bowl Burner Centerline

NOTE: Locate inlet to manifold.

B

C

A

Cop

yr

igh

t © 2017 - F

iv

es - All r

igh

ts r

eser

ved | Bulle

tin 4611 07/00

CONTACT US:

Fives North American Combustion, Inc.

4455 East 71st Street - Cleveland, OH 44105 - USA
Tel: +1 216 271 6000 - Fax: +1 216 373 4237
Email: fna.sales@fi vesgroup.com

www.fi vesgroup.com

WARNING:

Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot

surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
