Bulletin 4575
Page 13

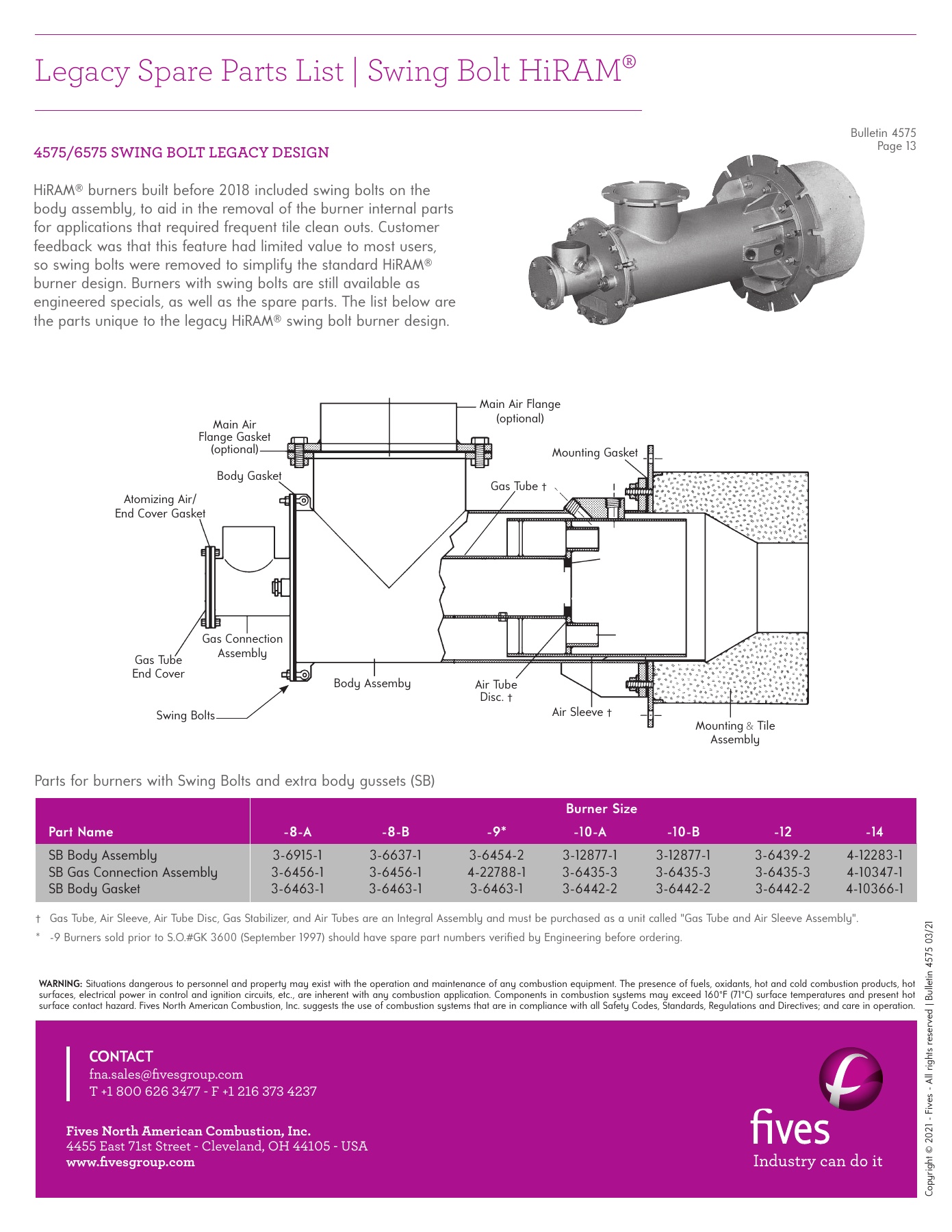

Legacy Spare Parts List | Swing Bolt HiRAM
®
WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
4575/6575 SWING BOLT LEGACY DESIGN
† Gas Tube, Air Sleeve, Air Tube Disc, Gas Stabilizer, and Air Tubes are an Integral Assembly and must be purchased as a unit called "Gas Tube and Air Sleeve Assembly".
* -9 Burners sold prior to S.O.# GK 3600 (September 1997) should have spare part numbers verifi ed by Engineering before ordering.
Main Air Flange
(optional)
Mounting Gasket
Gas Tube
†
Mounting
&
Tile
Assembly
Air Sleeve
†
Air Tube
Disc.
†
Body Assemby
Gas Connection
Assembly
Gas Tube
End Cover
Swing Bolts
Atomizing Air/
End Cover Gasket
Body Gasket
Main Air
Flange Gasket
(optional)
Part Name
-8-A
-8-B
-9*
-10-A
-10-B
-12
-14
SB Body Assembly
3-6915-1
3-6637-1
3-6454-2
3-12877-1
3-12877-1
3-6439-2
4-12283-1
SB Gas Connection Assembly
3-6456-1
3-6456-1
4-22788-1
3-6435-3
3-6435-3
3-6435-3
4-10347-1
SB Body Gasket
3-6463-1
3-6463-1
3-6463-1
3-6442-2
3-6442-2
3-6442-2
4-10366-1
Burner Size
