Stabilizer Assembly
Body Gasket
Burner designation

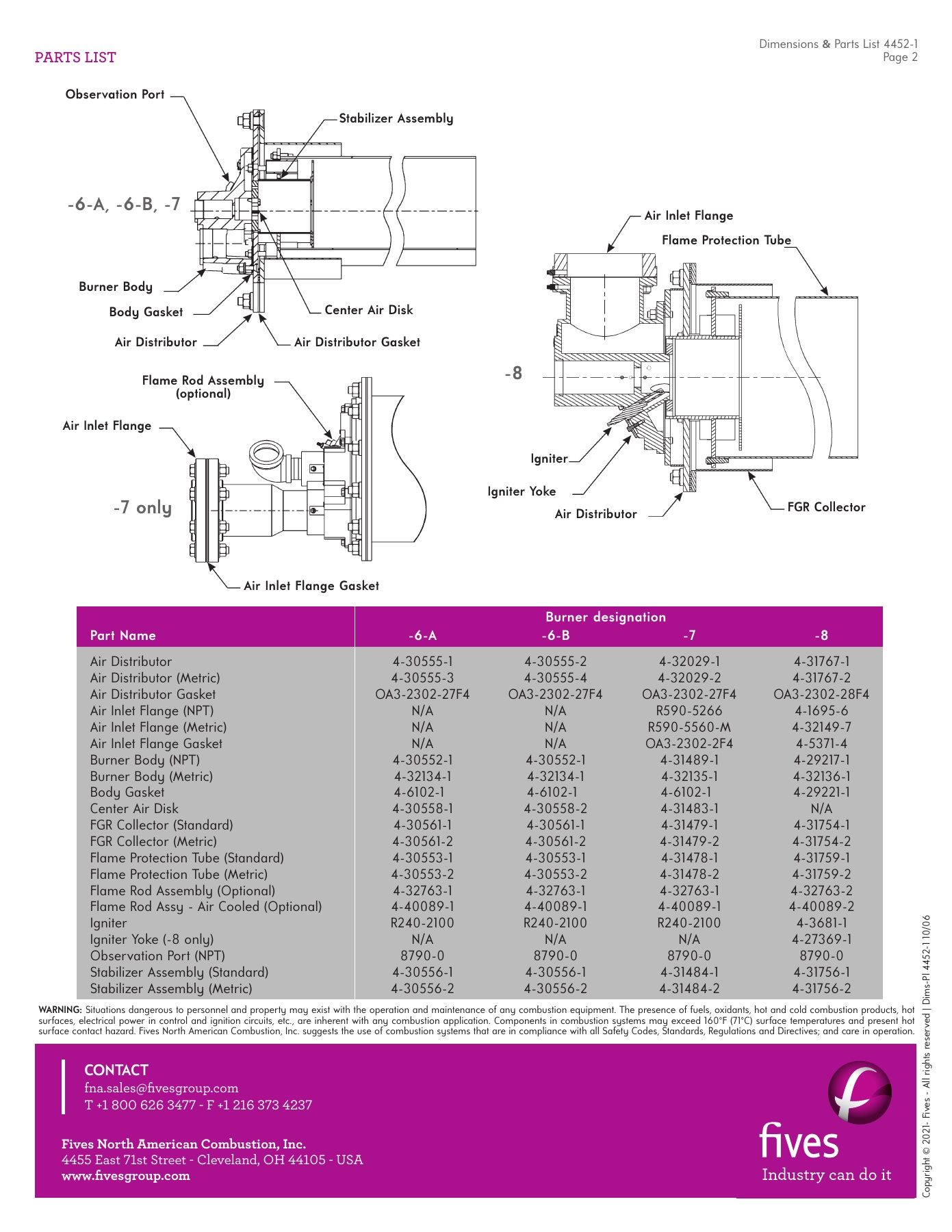

PARTS LIST
Dimensions
&
Parts List 4452-1
Page 2
Air Distributor
Burner Body
Air Distributor Gasket
Center Air Disk
Observation Port
Air Inlet Flange
Flame Protection Tube
FGR Collector
Air Distributor
Igniter Yoke
Igniter
Flame Rod Assembly
(optional)
Air Inlet Flange
Air Inlet Flange Gasket
-6-A, -6-B, -7
-8
-7 only
Part Name
-6-A
-6-B
-7
-8
Air Distributor
4-30555-1
4-30555-2
4-32029-1
4-31767-1
Air Distributor (Metric)
4-30555-3
4-30555-4
4-32029-2
4-31767-2
Air Distributor Gasket
OA3-2302-27F4
OA3-2302-27F4
OA3-2302-27F4
OA3-2302-28F4
Air Inlet Flange (NPT)
N/A
N/A
R590-5266
4-1695-6
Air Inlet Flange (Metric)
N/A
N/A
R590-5560-M
4-32149-7
Air Inlet Flange Gasket
N/A
N/A
OA3-2302-2F4
4-5371-4
Burner Body (NPT)
4-30552-1
4-30552-1
4-31489-1
4-29217-1
Burner Body (Metric)
4-32134-1
4-32134-1
4-32135-1
4-32136-1
Body Gasket
4-6102-1
4-6102-1
4-6102-1
4-29221-1
Center Air Disk
4-30558-1
4-30558-2
4-31483-1
N/A
FGR Collector (Standard)
4-30561-1
4-30561-1
4-31479-1
4-31754-1
FGR Collector (Metric)
4-30561-2
4-30561-2
4-31479-2
4-31754-2
Flame Protection Tube (Standard)
4-30553-1
4-30553-1
4-31478-1
4-31759-1
Flame Protection Tube (Metric)
4-30553-2
4-30553-2
4-31478-2
4-31759-2
Flame Rod Assembly (Optional)
4-32763-1
4-32763-1
4-32763-1
4-32763-2
Flame Rod Assy - Air Cooled (Optional)
4-40089-1
4-40089-1
4-40089-1
4-40089-2
Igniter R240-2100
R240-2100
R240-2100
4-3681-1
Igniter Yoke (-8 only)
N/A
N/A
N/A
4-27369-1
Observation Port (NPT)
8790-0
8790-0
8790-0
8790-0
Stabilizer Assembly (Standard)
4-30556-1
4-30556-1
4-31484-1
4-31756-1
Stabilizer Assembly (Metric)
4-30556-2
4-30556-2
4-31484-2
4-31756-2
Cop
yr
igh
t © 2021- F
iv
es - All r
igh
ts
r
eser
ved | Dims-Pl 4452-1 10/06
WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
