Dimensions
&
Parts List 4445-1
Page 3

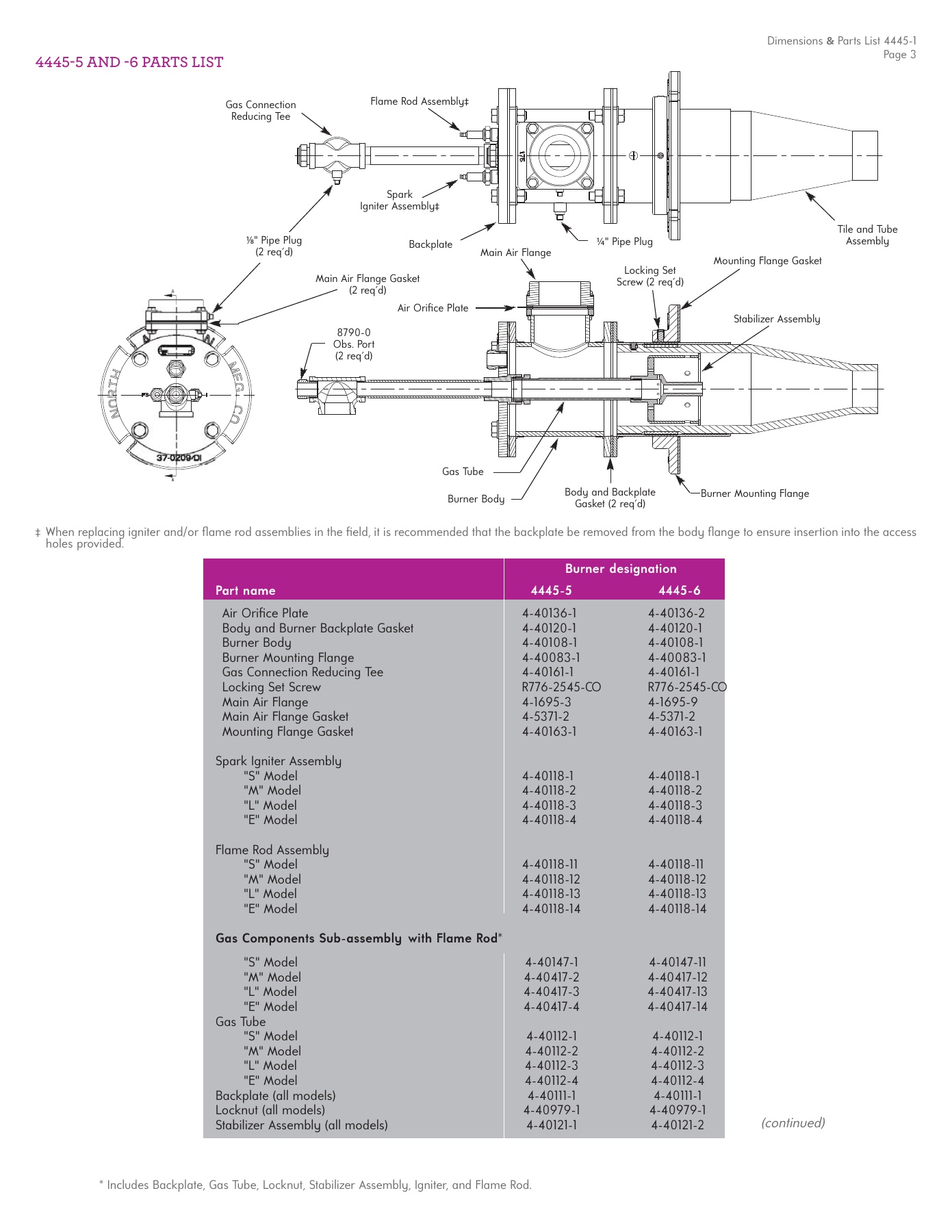

4445-5 AND -6 PARTS LIST
Tile and Tube
Assembly
¼
" Pipe Plug
Mounting Flange Gasket
Burner Mounting Flange
Air Orifi ce Plate
Main Air Flange
Main Air Flange Gasket
(2 reqd)
8790-0
Obs. Port
(2 reqd)
Gas Connection
Reducing Tee
Locking Set
Screw (2 reqd)
Burner designation
* Includes Backplate, Gas Tube, Locknut, Stabilizer Assembly, Igniter, and Flame Rod.
Part name
4445-5
4445-6
Air Orifi ce Plate
4-40136-1
4-40136-2
Body and Burner Backplate Gasket
4-40120-1
4-40120-1
Burner Body
4-40108-1
4-40108-1
Burner Mounting Flange
4-40083-1
4-40083-1
Gas Connection Reducing Tee
4-40161-1
4-40161-1
Locking Set Screw
R776-2545-CO
R776-2545-CO
Main Air Flange
4-1695-3
4-1695-9
Main Air Flange Gasket
4-5371-2
4-5371-2
Mounting Flange Gasket
4-40163-1
4-40163-1
Spark Igniter Assembly
"S"
Model
4-40118-1
4-40118-1
"M"
Model
4-40118-2
4-40118-2
"L"
Model
4-40118-3
4-40118-3
"E"
Model
4-40118-4
4-40118-4
Flame Rod Assembly
"S"
Model
4-40118-11
4-40118-11
"M"
Model
4-40118-12
4-40118-12
"L"
Model
4-40118-13
4-40118-13
"E"
Model
4-40118-14
4-40118-14
Gas Components Sub-assembly with Flame Rod
*
"S"
Model
4-40147-1
4-40147-11
"M"
Model
4-40417-2
4-40417-12
"L"
Model
4-40417-3
4-40417-13
"E"
Model
4-40417-4
4-40417-14
Gas Tube
"S"
Model
4-40112-1
4-40112-1
"M"
Model
4-40112-2
4-40112-2
"L"
Model
4-40112-3
4-40112-3
"E"
Model
4-40112-4
4-40112-4
Backplate (all models)
4-40111-1
4-40111-1
Locknut (all models)
4-40979-1
4-40979-1
Stabilizer Assembly (all models)
4-40121-1
4-40121-2
(continued)
Spark
Igniter Assembly‡
Flame Rod Assembly‡
Backplate
holes provided.
A
Stabilizer Assembly
Burner Body
Body and Backplate
Gasket (2 reqd)
1⁄8
" Pipe Plug
(2 reqd)
Gas Tube
