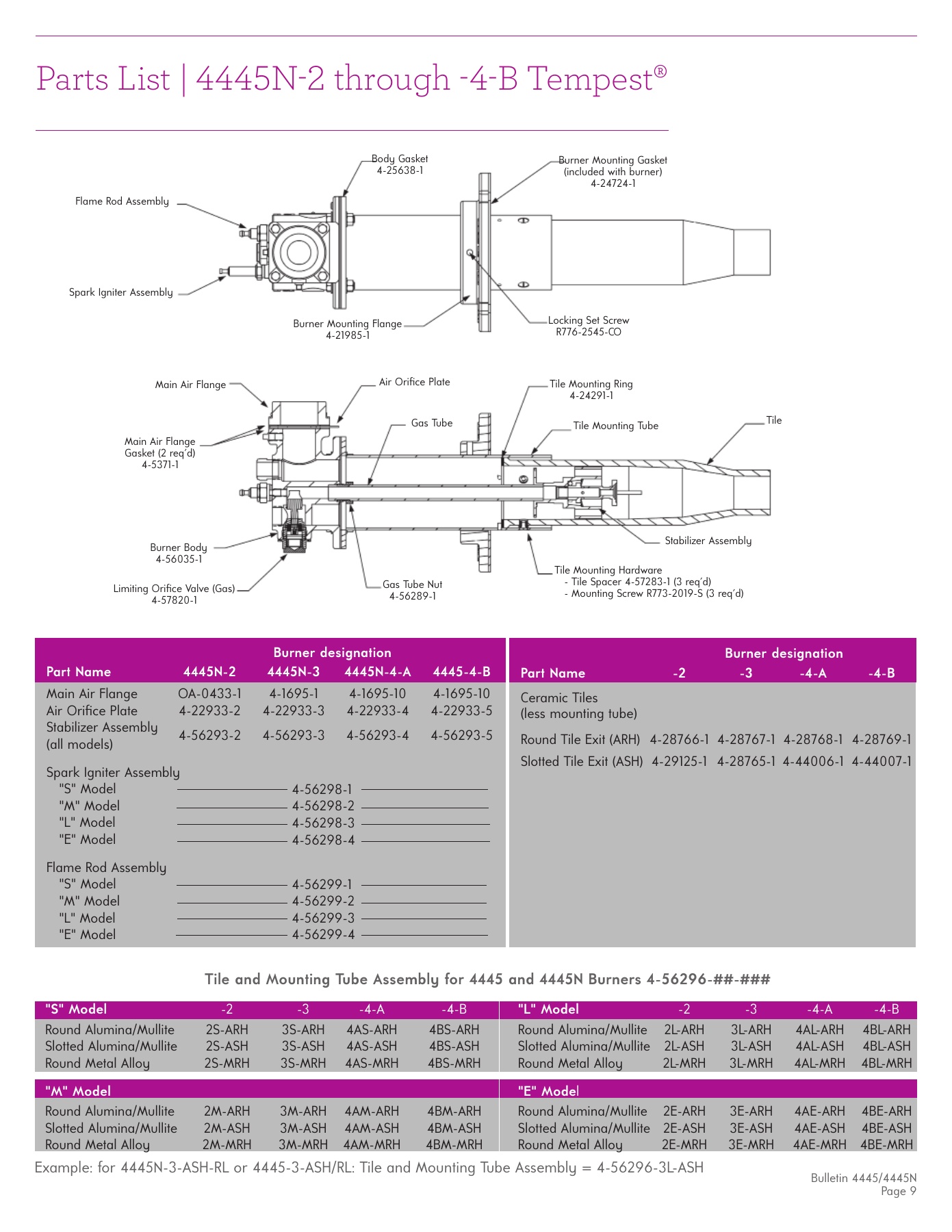

Parts List | 4445N-2 through -4-B Tempest®

Bulletin 4445/4445N

Page 9

Tile Mounting Hardware
   - Tile Spacer 4-57283-1 (3 reqd)
   - Mounting Screw R773-2019-S (3 reqd)

Limiting Orifi ce Valve (Gas)

4-57820-1

Gas Tube Nut

4-56289-1

Tile

Tile Mounting Ring

4-24291-1

Main Air Flange

Main Air Flange
Gasket (2 reqd)

4-5371-1

Air Orifi ce Plate

Spark Igniter Assembly

Body Gasket

4-25638-1

Tile Mounting Tube

Burner Mounting Flange

4-21985-1

Burner Mounting Gasket

(included with burner)

4-24724-1

Gas Tube

Stabilizer Assembly

Burner Body

4-56035-1

Locking Set Screw

R776-2545-CO

Flame Rod Assembly

 Part Name

4445N-2

4445N-3  4445N-4-A  4445-4-B

  Main Air Flange

OA-0433-1

4-1695-1

4-1695-10

4-1695-10

 Air Orifi ce Plate

4-22933-2

4-22933-3

4-22933-4

4-22933-5

 Stabilizer Assembly

4-56293-2 4-56293-3 4-56293-4 4-56293-5

(all

models)

  Spark Igniter Assembly

     "S" Model

     "M" Model

     "L" Model

     "E" Model

  Flame Rod Assembly

     "S" Model

     "M" Model

     "L" Model

     "E" Model

 4-56298-1
 4-56298-2
 4-56298-3
 4-56298-4

 4-56299-1
 4-56299-2
 4-56299-3
 4-56299-4

Burner designation

Burner designation

 Part Name

-2

-3

-4-A

-4-B

Ceramic

Tiles

  (less mounting tube)

  Round Tile Exit (ARH)  4-28766-1  4-28767-1  4-28768-1  4-28769-1

  Slotted Tile Exit (ASH)  4-29125-1  4-28765-1  4-44006-1  4-44007-1

"S" Model

 -2

-3

-4-A

-4-B

"L" Model

 -2

-3

-4-A

-4-B

  Round Alumina/Mullite

2S-ARH

3S-ARH

4AS-ARH

4BS-ARH

Round Alumina/Mullite  2L-ARH

3L-ARH

4AL-ARH  4BL-ARH

  Slotted Alumina/Mullite

2S-ASH

3S-ASH

4AS-ASH

4BS-ASH

Slotted Alumina/Mullite  2L-ASH

3L-ASH

4AL-ASH  4BL-ASH

  Round Metal Alloy

2S-MRH

3S-MRH

4AS-MRH

4BS-MRH

Round Metal Alloy

2L-MRH

3L-MRH

4AL-MRH  4BL-MRH

"M" Model

"E" Mode

l

  Round Alumina/Mullite

2M-ARH

3M-ARH  4AM-ARH

4BM-ARH

Round Alumina/Mullite  2E-ARH

3E-ARH

4A E -ARH  4BE-ARH

  Slotted Alumina/Mullite

2M-ASH

3M-ASH  4AM-ASH

4BM-ASH

Slotted Alumina/Mullite  2E-ASH

3E-ASH

4A E-ASH  4BE-ASH

  Round Metal Alloy

2M-MRH

3M-MRH  4AM-MRH

4BM-MRH

Round Metal Alloy

2E-MRH

3E-MRH

4A E-MRH  4BE-MRH

Tile and Mounting Tube Assembly for 4445 and 4445N Burners 4-56296-##-###

Example: for 4445N-3-ASH-RL or 4445-3-ASH/RL: Tile and Mounting Tube Assembly = 4-56296-3L-ASH
