Part Name
4442-0
4442-1
4442-2
4442-3
4442-4
4442-4-S
4442-5
4442-6
4442-7
Body 4-10334-1
4-5582-12
4-5582-13
4-5582-14
4-5582-15
4-5582-16
4-5782-9
4-5782-10
4-6097-4
Gasket
4-9083-1 4-5896-1
4-5896-1
4-5616-2 4-5616-2 4-5616-2
4-5853-4
4-5854-4
4-13912-1
Mounting
&
Tile Assembly
4-7848-57 4-7848-1
4-7848-2
4-7848-3 4-7848-4 4-7848-4
4-7848-5
4-7848-6
4-7848-7
Mounting
4-32422-1 4-32422-1
4-32422-1 4-32422-1 4-32422-1 4-32422-1
4-6724-2
4-6724-2
4-13913-1
Tile
4-8634-1
4-7483-1
4-5744-2
4-5745-3
4-5741-2
4-5741-2
4-6219-2
4-6220-1
4-6096-1
Observation
Port
8790-0 8790-0 8790-0 8790-0 8790-0 8790-0 8790-0 8790-0 8790-0
Petcock
Kit
4442PK 4442PK 4442PK 4442PK 4442PK 4442PK 4442PK 4442PK 4442PK
Flanged Mounting (4442- -F)
4-7474-1
4-7474-1
4-7474-1
4-7474-1
4-7474-1
4-7474-1
4-7475-1
4-7475-1
4-14884-1

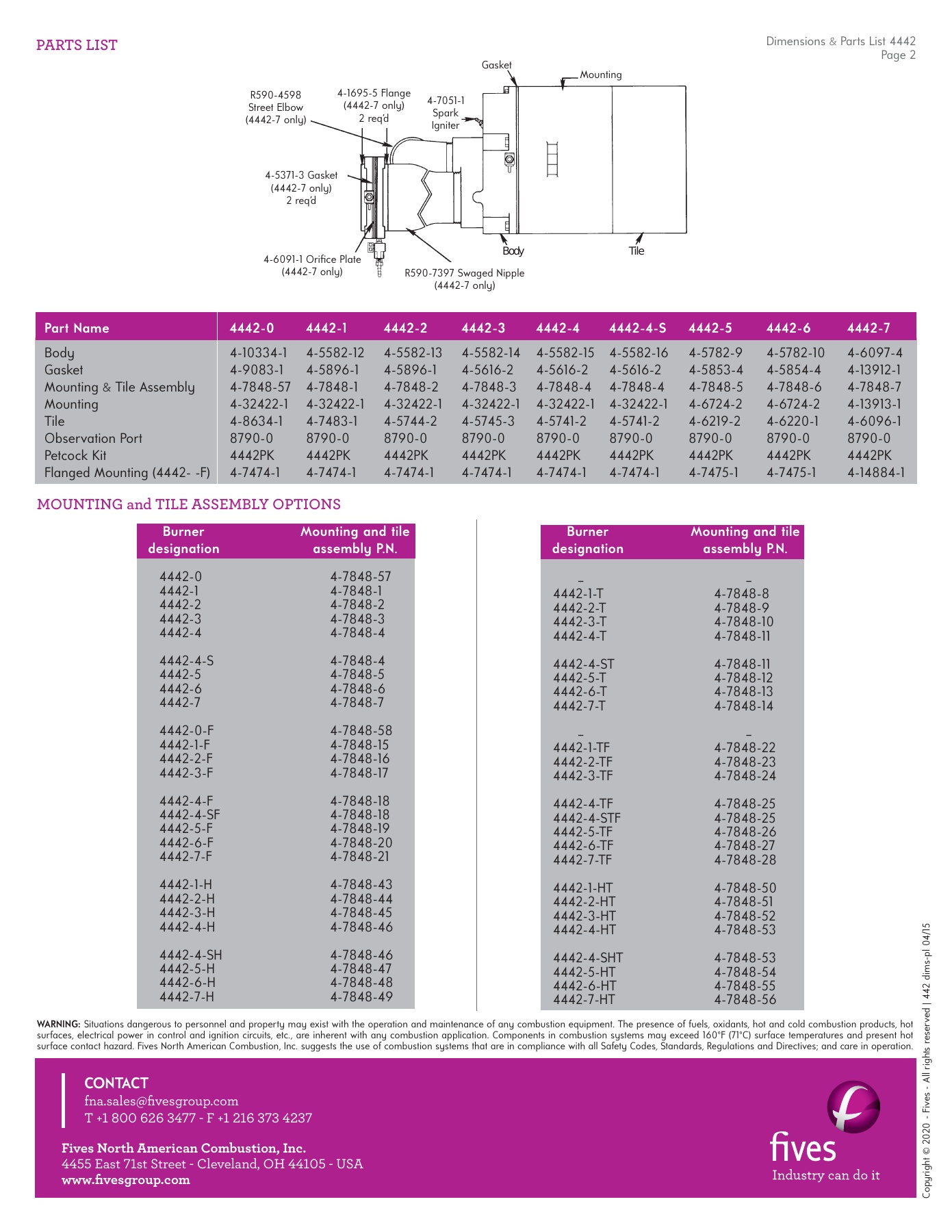

PARTS LIST
4-1695-5 Flange
(4442-7 only)
2 req’d
4-5371-3 Gasket
(4442-7 only)
2 req’d
4-6091-1 Orifi ce Plate
(4442-7 only)
R590-7397 Swaged Nipple
(4442-7 only)
Body
Tile
Mounting
Gasket
4-7051-1
Spark
Igniter
R590-4598
Street Elbow
(4442-7 only)
Burner
Mounting and tile
designation assembly
P.N.
4442-0
4-7848-57
4442-1
4-7848-1
4442-2
4-7848-2
4442-3
4-7848-3
4442-4
4-7848-4
4442-4-S
4-7848-4
4442-5
4-7848-5
4442-6
4-7848-6
4442-7
4-7848-7
4442-0-F
4-7848-58
4442-1-F
4-7848-15
4442-2-F
4-7848-16
4442-3-F
4-7848-17
4442-4-F
4-7848-18
4442-4-SF
4-7848-18
4442-5-F
4-7848-19
4442-6-F
4-7848-20
4442-7-F
4-7848-21
4442-1-H
4-7848-43
4442-2-H
4-7848-44
4442-3-H
4-7848-45
4442-4-H
4-7848-46
4442-4-SH
4-7848-46
4442-5-H
4-7848-47
4442-6-H
4-7848-48
4442-7-H
4-7848-49
Burner
Mounting and tile
designation
assembly
P.N.
–
–
4442-1-T
4-7848-8
4442-2-T
4-7848-9
4442-3-T
4-7848-10
4442-4-T
4-7848-11
4442-4-ST
4-7848-11
4442-5-T
4-7848-12
4442-6-T
4-7848-13
4442-7-T
4-7848-14
–
–
4442-1-TF
4-7848-22
4442-2-TF
4-7848-23
4442-3-TF
4-7848-24
4442-4-TF
4-7848-25
4442-4-STF
4-7848-25
4442-5-TF
4-7848-26
4442-6-TF
4-7848-27
4442-7-TF
4-7848-28
4442-1-HT
4-7848-50
4442-2-HT
4-7848-51
4442-3-HT
4-7848-52
4442-4-HT
4-7848-53
4442-4-SHT
4-7848-53
4442-5-HT
4-7848-54
4442-6-HT
4-7848-55
4442-7-HT
4-7848-56
MOUNTING and TILE ASSEMBLY OPTIONS
Dimensions
&
Parts List 4442
Page 2
Cop
yr
igh
t © 2020 - F
iv
es - All r
igh
ts r
eser
ved | 442 dims-pl 04/15
WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
