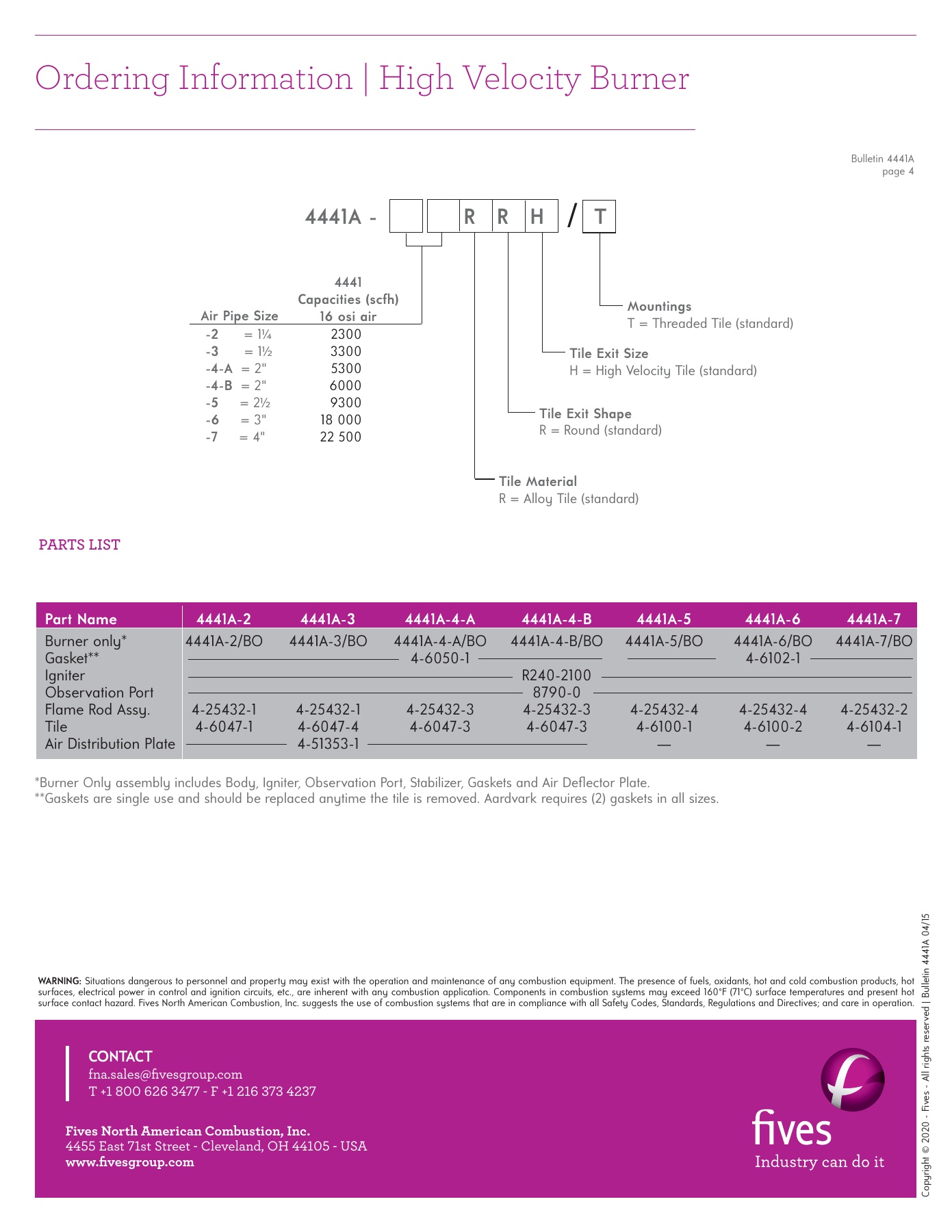

4441A - R R H T
/
Tile Material
R = Alloy Tile (standard)
Air Pipe Size
4441
Capacities (scfh)
16 osi air
Tile Exit Shape
R = Round (standard)
Tile Exit Size
H = High Velocity Tile (standard)
Mountings
T = Threaded Tile (standard)
-2
= 1¼
-3
= 1½
-4-A
= 2"
-4-B
= 2"
-5
= 2½
-6
= 3"
-7
= 4"
2300
3300
5300
6000
9300
18 000
22 500
Bulletin 4441A
page 4
PARTS LIST
Part Name
4441A-2
4441A-3
4441A-4-A
4441A-4-B
4441A-5
4441A-6
4441A-7
Burner only*
4441A-2/BO 4441A-3/BO 4441A-4-A/BO 4441A-4-B/BO 4441A-5/BO
4441A-6/BO 4441A-7/BO
Gasket**
4-6050-1
4-6102-1
Igniter
R240-2100
Observation Port
8790-0
Flame Rod Assy.
4-25432-1
4-25432-1
4-25432-3
4-25432-3
4-25432-4
4-25432-4
4-25432-2
Tile
4-6047-1
4-6047-4
4-6047-3
4-6047-3
4-6100-1
4-6100-2
4-6104-1
Air Distribution Plate
4-51353-1
—
—
—
*Burner Only assembly includes Body, Igniter, Observation Port, Stabilizer, Gaskets and Air Defl ector Plate.
**Gaskets are single use and should be replaced anytime the tile is removed. Aardvark requires (2) gaskets in all sizes.
Cop
yr
igh
t © 2020 - F
iv
es - All r
igh
ts r
eser
ved | Bulle
tin 4441A 04/15
WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
