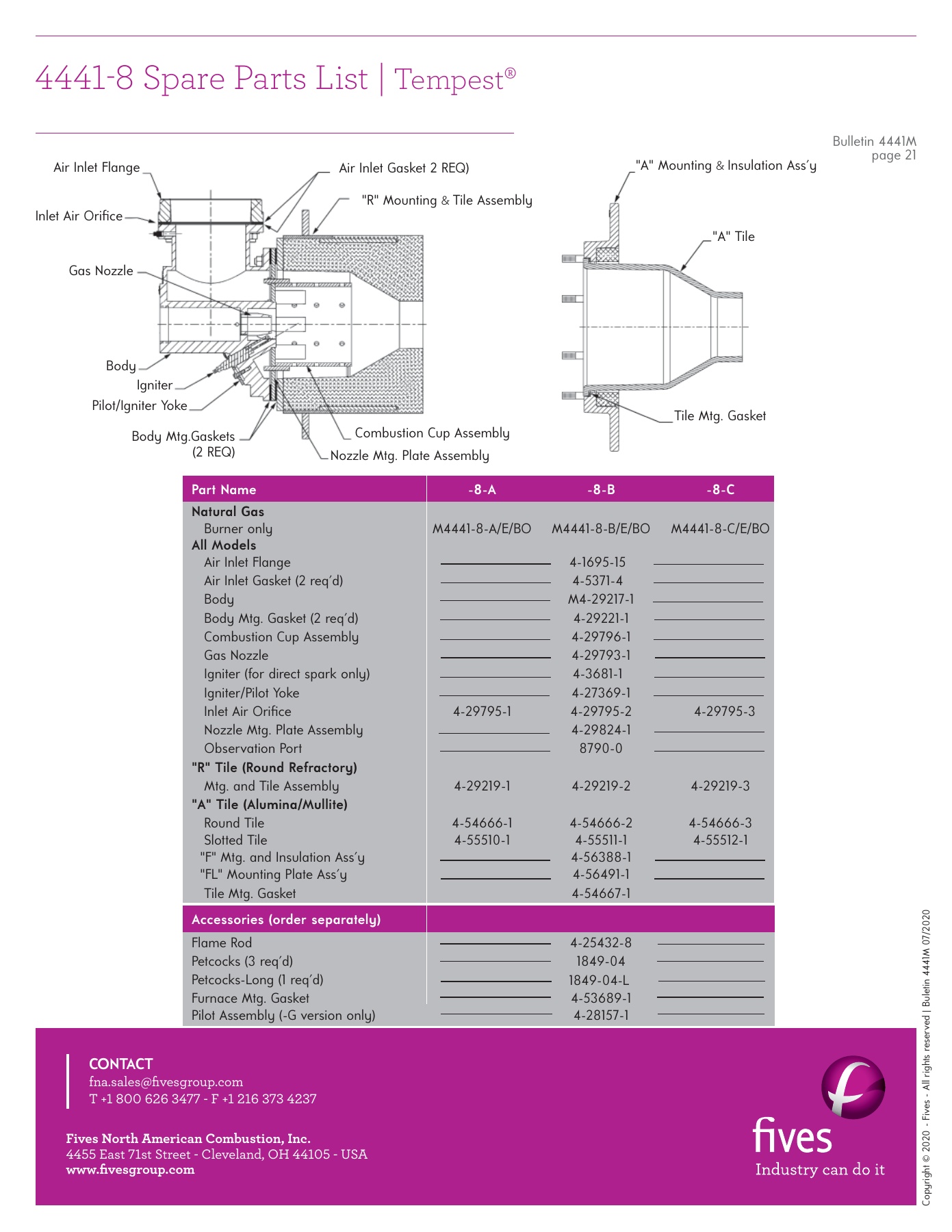

4441-8 Spare Parts List |
Tempest®
Bulletin 4441M
page 21
Air Inlet Flange
Inlet Air Orifi ce
Gas Nozzle
Body
Igniter
Pilot/Igniter Yoke
Combustion Cup Assembly
Nozzle Mtg. Plate Assembly
Tile Mtg. Gasket
"A" Tile
Body Mtg.Gaskets
(2 REQ)
Air Inlet Gasket 2 REQ)
"R" Mounting
&
Tile Assembly
"A" Mounting
&
Insulation Assy
Part Name
-8-A
-8-B
-8-C
Natural Gas
Burner only
M4441-8-A/E/BO M4441-8-B/E/BO M4441-8-C/E/BO
All Models
Air Inlet Flange
4-1695-15
Air Inlet Gasket (2 reqd)
4-5371-4
Body
M4-29217-1
Body Mtg. Gasket (2 reqd)
4-29221-1
Combustion Cup Assembly
4-29796-1
Gas Nozzle
4-29793-1
Igniter (for direct spark only)
4-3681-1
Igniter/Pilot Yoke
4-27369-1
Inlet Air Orifi ce
4-29795-1
4-29795-2
4-29795-3
Nozzle Mtg. Plate Assembly
4-29824-1
Observation Port
8790-0
"R" Tile (Round Refractory)
Mtg. and Tile Assembly
4-29219-1
4-29219-2
4-29219-3
"A" Tile (Alumina/Mullite)
Round Tile
4-54666-1
4-54666-2
4-54666-3
Slotted Tile
4-55510-1
4-55511-1
4-55512-1
"F" Mtg. and Insulation Assy
4-56388-1
"FL" Mounting Plate Assy
4-56491-1
Tile Mtg. Gasket
4-54667-1
Accessories (order separately)
Flame Rod
4-25432-8
Petcocks (3 reqd)
1849-04
Petcocks-Long (1 reqd)
Furnace Mtg. Gasket
4-53689-1
Pilot Assembly (-G version only)
4-28157-1
1849-04-L
