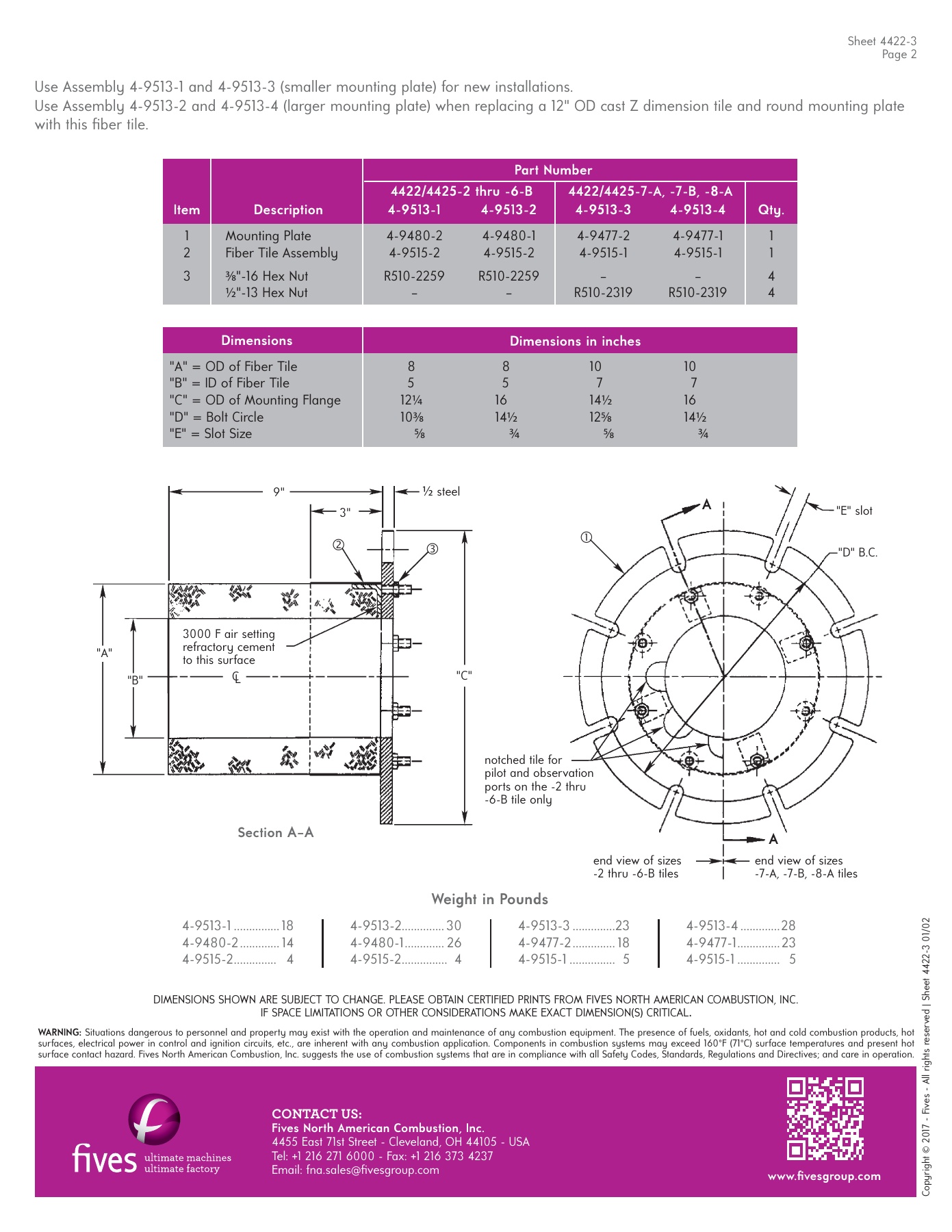

Sheet 4422-3

Page 2

Weight in Pounds

4-9513-1

............... 18 4-9513-2.............. 30 4-9513-3

..............23 4-9513-4

.............28

4-9480-2

............. 14 4-9480-1

............. 26 4-9477-2

.............. 18 4-9477-1

.............. 23

4-9515-2 ..............  4 4-9515-2

............... 4 4-9515-1

............... 5 4-9515-1

..............  5

Use Assembly 4-9513-1 and 4-9513-3 (smaller mounting plate) for new installations.
Use Assembly 4-9513-2 and 4-9513-4 (larger mounting plate) when replacing a 12" OD cast Z dimension tile and round mounting plate
with this fi ber tile.

 Item

Description

4-9513-1

4-9513-2

4-9513-3

4-9513-4

Qty.

 1

Mounting

Plate

4-9480-2

4-9480-1

4-9477-2

4-9477-1

1

  2

Fiber Tile Assembly

4-9515-2

4-9515-2

4-9515-1

4-9515-1

1

 3

3⁄8

"-16 Hex Nut

R510-2259

R510-2259

–

–

4



½

"-13 Hex Nut

–

–

R510-2319

R510-2319

4

Part Number

4422/4425-2 thru -6-B

4422/4425-7-A, -7-B, -8-A



Dimensions





 "A" = OD of Fiber Tile

 8

 8

10

10

 "B" = ID of Fiber Tile

 5

 5

 7

 7

 "C" = OD of Mounting Flange

12

¼

 16  14

½

 16

 "D" = Bolt Circle

10

3⁄8

 14

½

 12

5⁄8

 14

½

 "E" = Slot Size

  

5⁄8

   

¾

   

5⁄8

   

¾



Dimensions in inches

A

A

"A"

"B"

"C"

9"

3"

3000 F air setting
refractory cement
to this surface

"E" slot

"D" B.C.

½

 steel

CL

notched tile for
pilot and observation
ports on the -2 thru
-6-B tile only

end view of sizes
-2 thru -6-B tiles

end view of sizes
-7-A, -7-B, -8-A tiles

Section

A–A

DIMENSIONS SHOWN ARE SUBJECT TO CHANGE. PLEASE OBTAIN CERTIFIED PRINTS FROM FIVES NORTH AMERICAN COMBUSTION, INC.

IF SPACE LIMITATIONS OR OTHER CONSIDERATIONS MAKE EXACT DIMENSION(S) CRITICAL

.

Cop

yr

igh

t © 2017 - F

iv

es - All r

igh

ts r

eser

ved | Shee

t 4422-3 01/02

CONTACT US:

Fives North American Combustion, Inc.

4455 East 71st Street - Cleveland, OH 44105 - USA
Tel: +1 216 271 6000 - Fax: +1 216 373 4237
Email: fna.sales@fi vesgroup.com

www.fi vesgroup.com

WARNING:

Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot

surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
