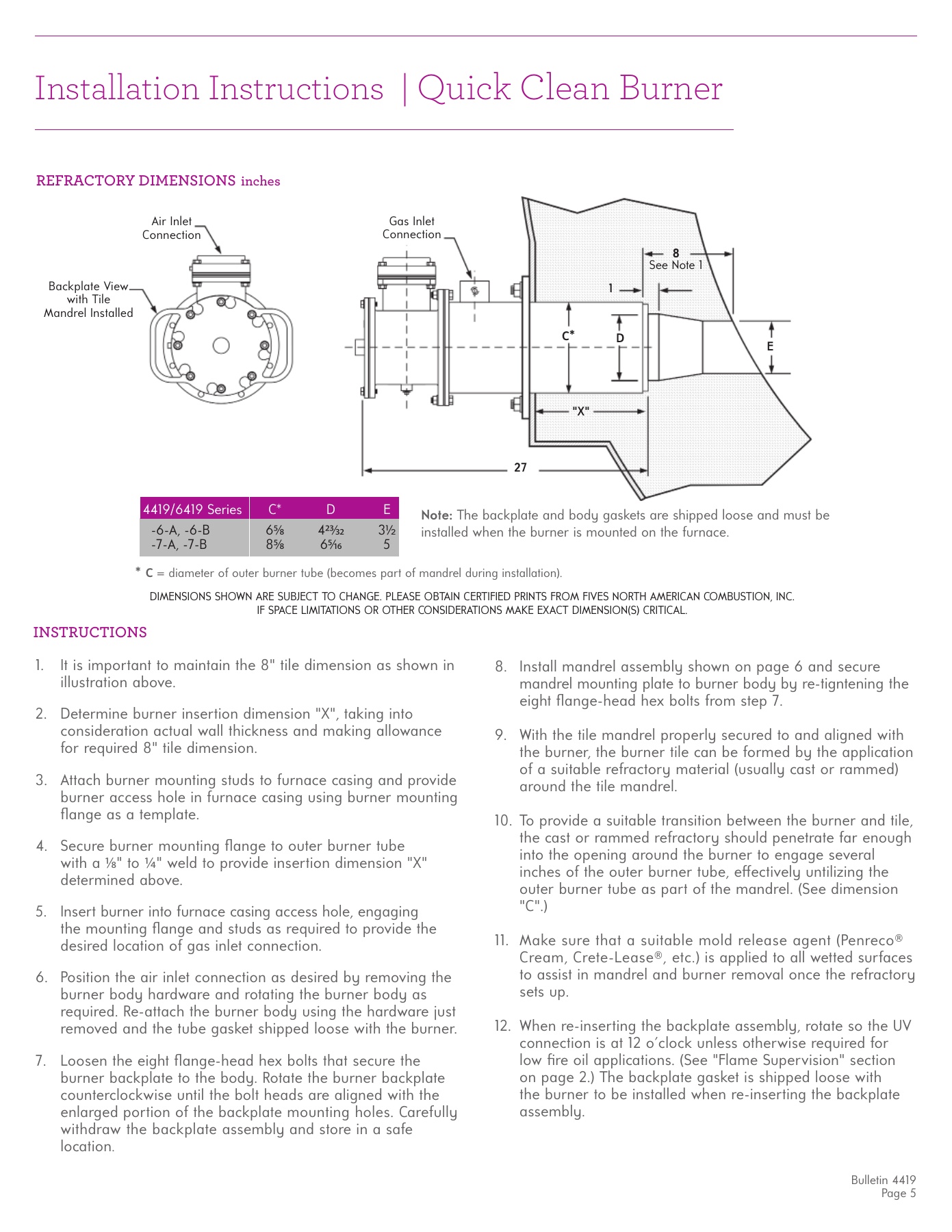

Installation Instructions |
Quick Clean Burner
REFRACTORY DIMENSIONS
inches
"X"
INSTRUCTIONS
1. It is important to maintain the 8" tile dimension as shown in
illustration above.
2. Determine burner insertion dimension "X", taking into
consideration actual wall thickness and making allowance
for required 8" tile dimension.
3. Attach burner mounting studs to furnace casing and provide
burner access hole in furnace casing using burner mounting
fl ange as a template.
4. Secure burner mounting fl ange to outer burner tube
with a
1⁄8
" to
¼
" weld to provide insertion dimension "X"
determined above.
5. Insert burner into furnace casing access hole, engaging
the mounting fl ange and studs as required to provide the
desired location of gas inlet connection.
6. Position the air inlet connection as desired by removing the
7. Loosen the eight fl ange-head hex bolts that secure the
.
8. Install mandrel assembly shown on page 6 and secure
9. With the tile mandrel properly secured to and aligned with
the burner, the burner tile can be formed by the application
of a suitable refractory material (usually cast or rammed)
around the tile mandrel.
10. To provide a suitable transition between the burner and tile,
the cast or rammed refractory should penetrate far enough
into the opening around the burner to engage several
inches of the outer burner tube, eff ectively untilizing the
outer burner tube as part of the mandrel. (See dimension
"C".)
11. Make sure that a suitable mold release agent (Penreco®
Cream, Crete-Lease®, etc.) is applied to all wetted surfaces
to assist in mandrel and burner removal once the refractory
sets up.
12. When re-inserting the backplate assembly, rotate so the UV
connection is at 12 oclock unless otherwise required for
low fi re oil applications. (See "Flame Supervision" section
on page 2.) The backplate gasket is shipped loose with
the burner to be installed when re-inserting the backplate
assembly.
Bulletin 4419
Page 5
Gas Inlet
Connection
Air Inlet
Connection
Backplate View
with Tile
Mandrel Installed
27
E
8
See Note 1
1
C
*
D
*
C
= diameter of outer burner tube (becomes part of mandrel during installation).
DIMENSIONS SHOWN ARE SUBJECT TO CHANGE. PLEASE OBTAIN CERTIFIED PRINTS FROM FIVES NORTH AMERICAN COMBUSTION, INC.
IF SPACE LIMITATIONS OR OTHER CONSIDERATIONS MAKE EXACT DIMENSION(S) CRITICAL.
4419/6419 Series
C*
D
E
-6-A, -6-B
6
5⁄8
4
23⁄32
3½
-7-A, -7-B
8
5⁄8
6
5⁄16
5
Note:
installed when the burner is mounted on the furnace.
