Part Name
4384-16
4384-18
4384-20
4384-22
4384-24
4384-26
Gas Connection Sub-Assembly
4-15016-2 4-15016-3
4-15016-3 4-15016-3
4-15016-3
4-15016-3
(1) Gas Connection
4-14600-1
4-14555-1
4-14555-1
4-14555-1
4-14555-1
4-14555-1
(2) Gas Cartridge Assy.
4-6063-5
4-6063-6
4-6063-6
4-6063-6
4-6063-6
4-6063-6
(3) Thread Protector
R865-0210
R865-0240
R865-0240
R865-0240
R865-0240
R865-0240
(4) ½ " Flat Washer
R970-7370
R970-7370
R970-7370
R970-7370
R970-7370
R970-7370
(5) ½ "-13 Hex Nut
R510-2319
R510-2319
R510-2319
R510-2319
R510-2319
R510-2319
(6) ¼ " NPT Sq. Hd. Pipe Plug
R590-7820
R590-7820
R590-7820
R590-7820
R590-7820
R590-7820
(7) Gas Conn. Gasket
4-14739-1
4-14739-2
4-14739-2
4-14739-2
4-14739-2
4-14739-2
(8) Pipe Sealant
R790-1062
R790-1062
R790-1062
R790-1062
R790-1062
R790-1062
Part Name
4384-8
4384-9
4384-10-A
4384-10-B
4384-12
4384-14
Gas Connection Sub-Assembly
4-15016-1 4-15016-1
4-15016-2
4-15016-2
4-15016-2
4-15016-2
(1)
Gas Connection
4-14600-2
4-14600-2
4-14600-1
4-14600-1
4-14600-1
4-14600-1
(2)
Gas Cartridge Assy.
4-6063-5
4-6063-5
4-6063-5
4-6063-5
4-6063-5
4-6063-5
(3)
Thread Protector
R865-0210
R865-0210
R865-0210
R865-0210
R865-0210
R865-0210
(4)
½ " Flat Washer
R970-7370
R970-7370
R970-7370
R970-7370
R970-7370
R970-7370
(5)
½ "-13 Hex Nut
R510-2319
R510-2319
R510-2319
R510-2319
R510-2319
R510-2319
(6)
¼ " NPT Sq. Hd. Pipe Plug
R590-7820
R590-7820
R590-7820
R590-7820
R590-7820
R590-7820
(7)
Gas Conn. Gasket
4-14739-1
4-14739-1
4-14739-1
4-14739-1
4-14739-1
4-14739-1
(8) Pipe Sealant
R790-1062
R790-1062
R790-1062
R790-1062
R790-1062
R790-1062

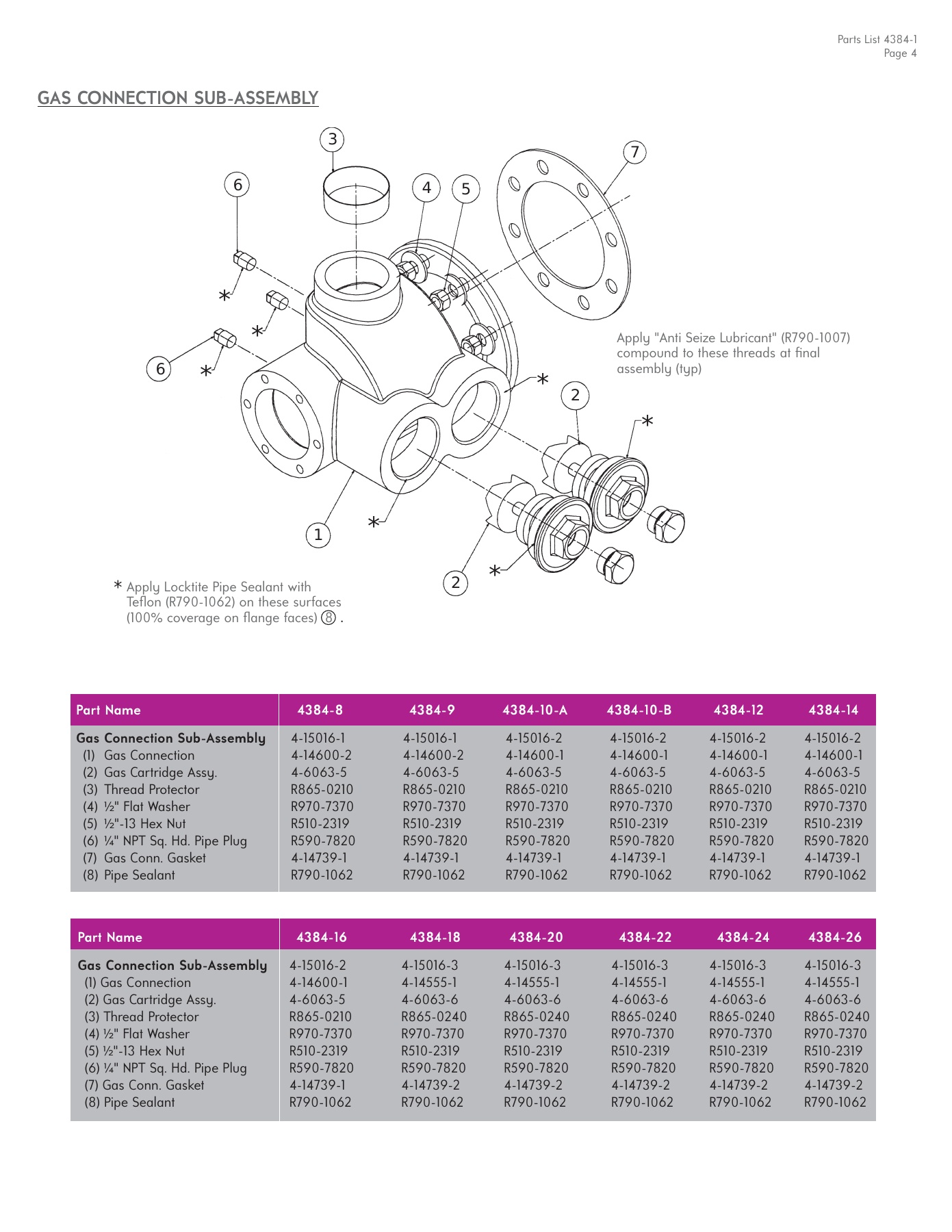

GAS CONNECTION SUB-ASSEMBLY
7
Apply "Anti Seize Lubricant" (R790-1007)
compound to these threads at fi nal
assembly (typ)
Parts List 4384-1
Page 4
3
4
5
6
6
1
2
2
Apply Locktite Pipe Sealant with
Tefl on (R790-1062) on these surfaces
(100% coverage on fl ange faces)
8
.
*
*
*
*
*
*
*
*
