Part Name

4384-16

4384-18

4384-20

4384-22

4384-24

4384-26

(1)

 

Radial Gas Tube

4-47753-1

4-47759-1

4-47832-1

4-47846-1

4-47862-1

4-47929-1

(2)

 

Forward Gas Tube

4-47754-1

4-47760-1

4-47833-1

4-47847-1

4-47863-1

4-47930-1

(3)

 

Gas Nozzle (8 psig)

4-15412-6

4-15413-1

4-15413-2

4-15413-3

4-15413-4

4-15413-9

(3)

 

Gas Nozzle (2 psig)

4-15412-12

4-15413-5

4-15413-6

N/A

N/A

N/A

(4)

 

Fuel Tube Gasket

4-14739-1

4-14739-2

4-14739-2

4-14739-2

4-14739-2

4-14739-2

(5) Pipe Sealant w/Tefl

on

R790-1062 R790-1062 R790-1062 R790-1062  R790-1062 R790-1062



Part Name

4384-8

4384-9

4384-10-A

4384-10-B

4384-12

4384-14

(1)

 

Radial Gas Tube

4-47712-1

4-47446-1

4-47719-1

4-47719-1

4-47732-1

4-47747-1

(2)

 

Forward Gas Tube

4-47713-1

4-47578-1

4-47720-1

4-47720-1

4-47733-1

4-47748-1

(3)

 

Gas Nozzle (8 psig)

4-15411-1

4-15411-2

4-15412-1

4-15412-2

4-15412-4

4-15412-5

(3)

 

Gas Nozzle (2 psig)

4-15411-3

4-15411-4

4-15412-7

4-15412-8

4-15412-10

4-15412-11

(4)

 

Fuel

Tube

Gasket

4-14739-1 4-14739-1 4-14739-1 4-14739-1  4-14739-1 4-14739-1

(5) Pipe Sealant w/Tefl

on

R790-1062 R790-1062 R790-1062 R790-1062  R790-1062 R790-1062

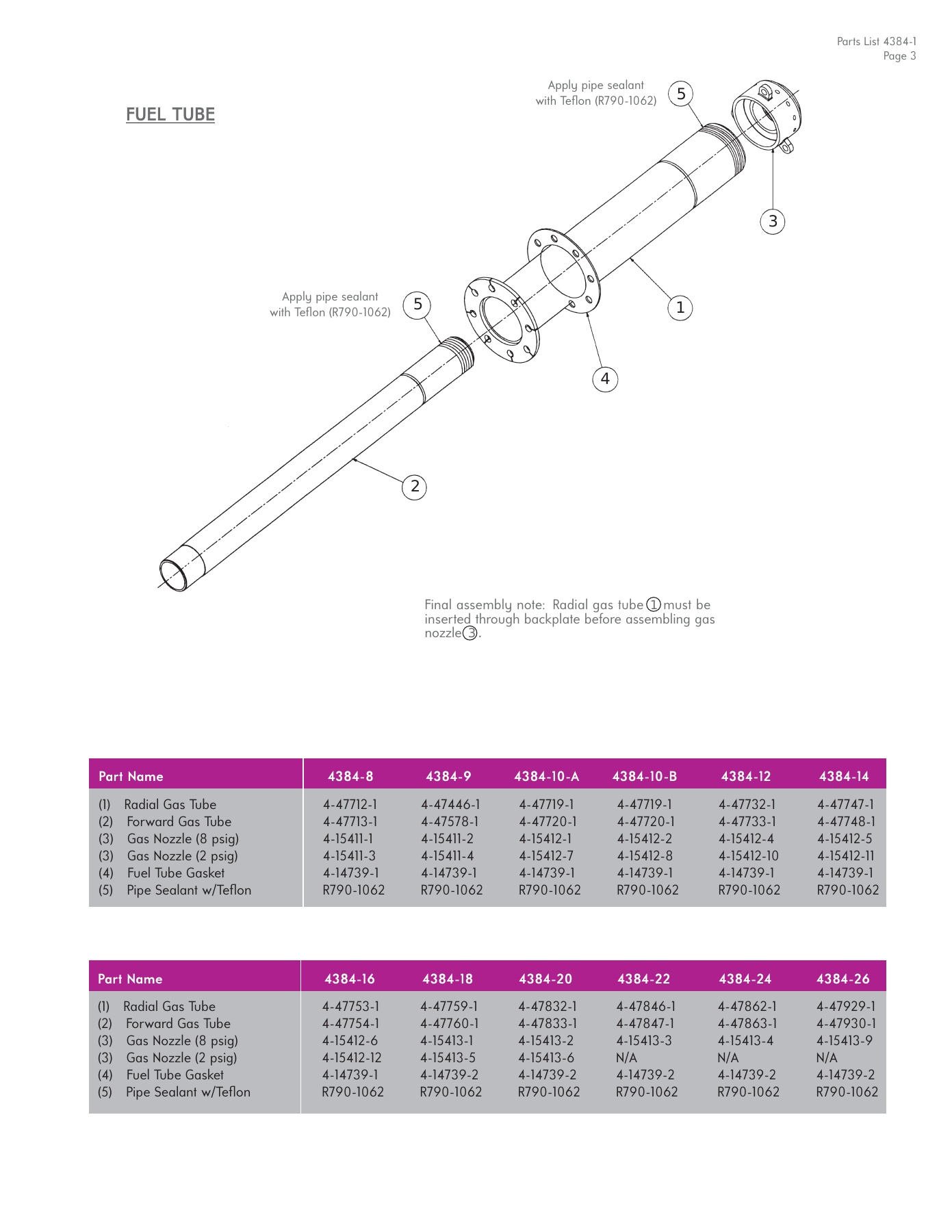

FUEL TUBE

Final assembly note: Radial gas tube

 1

must be

inserted through backplate before assembling gas

nozzle

  3  .

Parts List 4384-1

Page 3

2

5

4

1

3

5

Apply pipe sealant

with Tefl on (R790-1062)

Apply pipe sealant

with Tefl on (R790-1062)
