BODY
Part Name
4384-16
4384-18
4384-20
4384-22
4384-24
4384-26
(1)
Body 4-14915-1
4-14916-1
4-14917-1
4-14918-1
4-14919-1
4-47927-1
(2)
Thread Protector
R865-0200
R865-0200
R865-0200
R865-0200
R865-0200
R865-0200
(3)
1" Sq. Hd. Pipe Plug
R590-7860
R590-7860
R590-7860
R590-7860
R590-7860
R590-7860
(4)
1" Thread Protector
R865-0180
R865-0180
R865-0180
R865-0180
R865-0180
R865-0180
(5)
¼ " Sq. Hd. Pipe Plug
R590-7820
R590-7820
R590-7820
R590-7820
R590-7820
R590-7820
(6)
Pipe Sealant w/Tefl on
R790-1062
R790-1062
R790-1062
R790-1062
R790-1062
R790-1062
* Apply "Anti Seize Lubricant" (R790-1007) compound to these threads at fi nal assembly.
Part Name
4384-8
4384-9
4384-10-A
4384-10-B
4384-12
4384-14
(1)
Body 4-15087-1
4-14911-1
4-14912-1
4-15135-1
4-14913-1
4-14914-1
(2)
Thread
Protector
R865-0185 R865-0185 R865-0190
R865-0190
R865-0200
R865-0200
(3)
1" Sq. Hd. Pipe Plug
R590-7860
R590-7860
R590-7860
R590-7860
R590-7860
R590-7860
(4)
1" Thread Protector
R865-0180
R865-0180
R865-0180
R865-0180
R865-0180
R865-0180
(5)
¼ " Sq. Hd. Pipe Plug
R590-7820
R590-7820
R590-7820
R590-7820
R590-7820
R590-7820
(6)
Pipe Sealant w/Tefl on
R790-1062
R790-1062
R790-1062
R790-1062
R790-1062
R790-1062
Apply pipe sealant
with Tefl on (R790-1062)
5
1
3
2
3
(typ)
*
(typ)
*
4

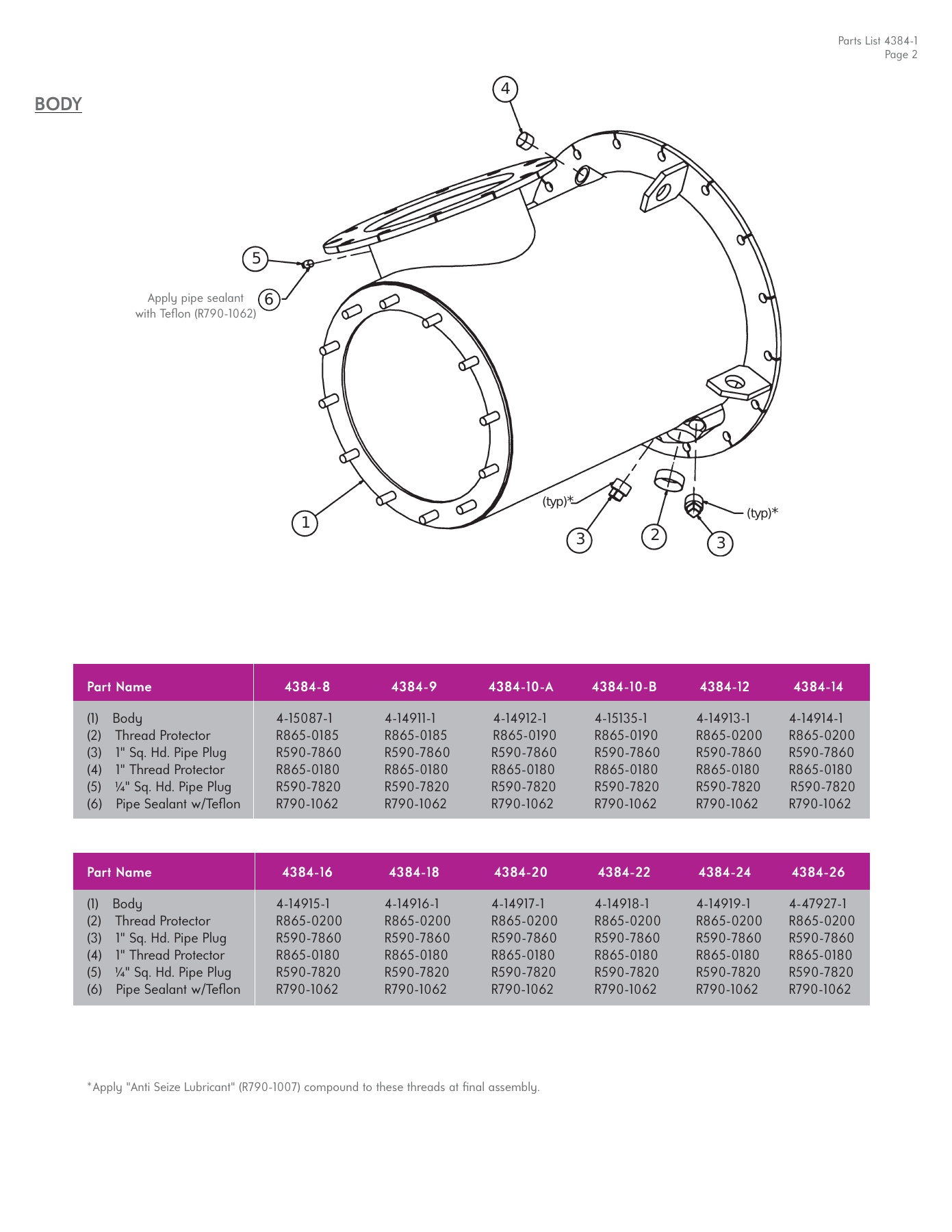

Parts List 4384-1
Page 2
6
