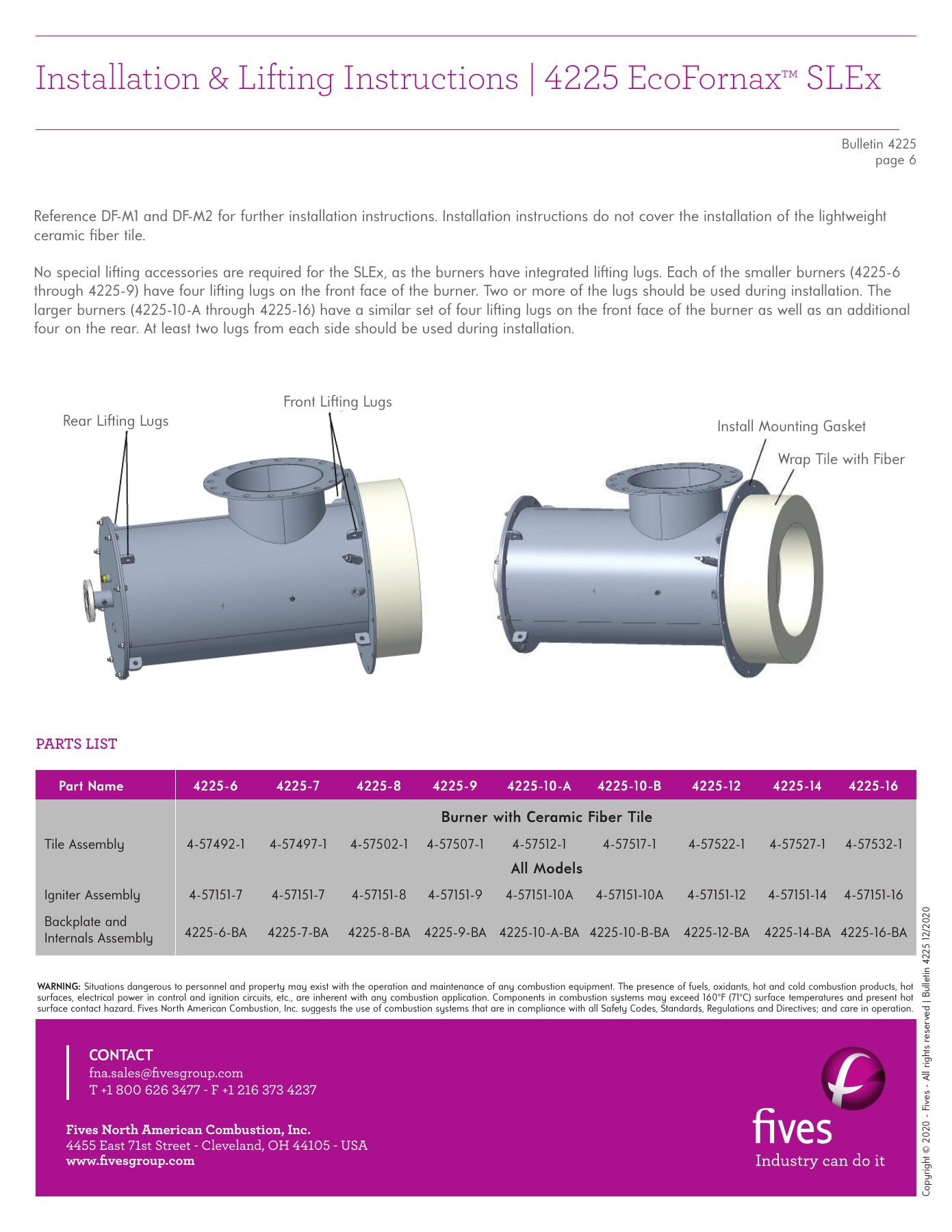

Installation & Lifting Instructions | 4225 EcoFornax

 SLEx

Bulletin 4225

page 6

Cop

yr

igh

t © 2020 - F

iv

es - All r

igh

ts

 r

eser

ved | Bulle

tin 4225 12/2020

WARNING:

Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot

surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.

Reference DF-M1 and DF-M2 for further installation instructions. Installation instructions do not cover the installation of the lightweight
ceramic fi ber tile.

No special lift ing accessories are required for the SLEx, as the burners have integrated lift ing lugs. Each of the smaller burners (4225-6
through 4225-9) have four lift ing lugs on the front face of the burner. Two or more of the lugs should be used during installation. The
larger burners (4225-10-A through 4225-16) have a similar set of four lift ing lugs on the front face of the burner as well as an additional
four on the rear. At least two lugs from each side should be used during installation.

Front Lift ing Lugs

Install Mounting Gasket

Wrap Tile with Fiber

Rear Lift ing Lugs

PARTS LIST



  Part Name

4225-6

4225-7

4225-8

4225-9

4225-10-A

4225-10-B

4225-12

4225-14

4225-16



 Tile Assembly

4-57492-1

4-57497-1  4-57502-1  4-57507-1

4-57512-1

4-57517-1

4-57522-1

4-57527-1  4-57532-1

 Igniter Assembly

4-57151-7

4-57151-7

4-57151-8  4-57151-9  4-57151-10A  4-57151-10A

4-57151-12  4-57151-14  4-57151-16

 Backplate and

4225-6-BA 4225-7-BA 4225-8-BA 4225-9-BA

4225-10-A-BA

4225-10-B-BA 4225-12-BA 4225-14-BA

4225-16-BA

 Internals Assembly

Burner with Ceramic Fiber Tile

All Models

Fives North American Combustion, Inc.

4455 East 71st Street - Cleveland, OH 44105 - USA

www.fi vesgroup.com

CONTACT

fna.sales@fi vesgroup.com
T +1 800 626 3477 - F +1 216 373 4237
