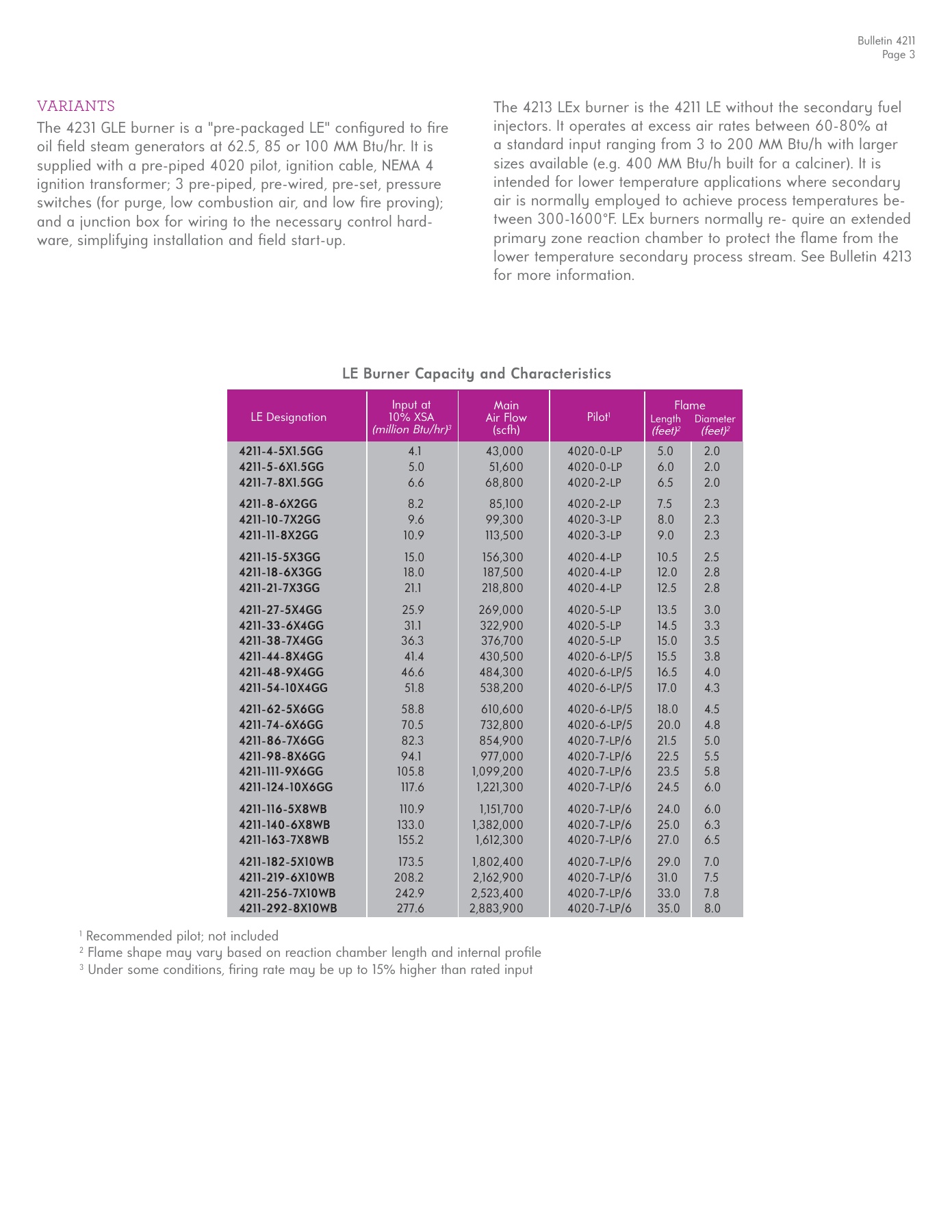

Bulletin 4211
Page 3
VARIANTS
The 4231 GLE burner is a "pre-packaged LE" confi gured to fi re
oil fi eld steam generators at 62.5, 85 or 100 MM Btu/hr. It is
supplied with a pre-piped 4020 pilot, ignition cable, NEMA 4
ignition transformer; 3 pre-piped, pre-wired, pre-set, pressure
switches (for purge, low combustion air, and low fi re proving);
and a junction box for wiring to the necessary control hard-
ware, simplifying installation and fi eld start-up.
The 4213 LEx burner is the 4211 LE without the secondary fuel
injectors. It operates at excess air rates between 60-80% at
a standard input ranging from 3 to 200 MM Btu/h with larger
sizes available (e.g. 400 MM Btu/h built for a calciner). It is
intended for lower temperature applications where secondary
air is normally employed to achieve process temperatures be-
tween 300-1600°F. LEx burners normally re- quire an extended
primary zone reaction chamber to protect the fl ame from the
lower temperature secondary process stream. See Bulletin 4213
for more information.
Diameter
(feet)
2
Length
(feet)
2
Flame
LE Burner Capacity and Characteristics
4211-4-5X1.5GG
4.1 43,000
4020-0-
LP
5.0 2.0
4211-5-6X1.5GG
5.0 51,600
4020-0-
LP
6.0 2.0
4211-7-8X1.5GG
6.6 68,800
4020-2-
LP
6.5 2.0
4211-8-6X2GG
8.2 85,100
4020-2-
LP
7.5 2.3
4211-10-7X2GG
9.6 99,300
4020-3-
LP
8.0 2.3
4211-11-8X2GG
10.9 113,500
4020-3-
LP
9.0 2.3
4211-15-5X3GG
15.0 156,300
4020-4-
LP
10.5 2.5
4211-18-6X3GG
18.0 187,500
4020-4-
LP
12.0 2.8
4211-21-7X3GG
21.1 218,800
4020-4-
LP
12.5 2.8
4211-27-5X4GG
25.9 269,000
4020-5-
LP
13.5
3.0
4211-33-6X4GG
31.1 322,900
4020-5-
LP
14.5
3.3
4211-38-7X4GG
36.3 376,700
4020-5-
LP
15.0
3.5
4211-44-8X4GG
41.4 430,500
4020-6-
LP
/5 15.5 3.8
4211-48-9X4GG
46.6 484,300
4020-6-
LP
/5 16.5 4.0
4211-54-10X4GG
51.8 538,200
4020-6-
LP
/5 17.0 4.3
4211-62-5X6GG
58.8 610,600
4020-6-
LP
/5 18.0 4.5
4211-74-6X6GG
70.5 732,800
4020-6-
LP
/5 20.0 4.8
4211-86-7X6GG
82.3 854,900
4020-7-
LP
/6 21.5 5.0
4211-98-8X6GG
94.1 977,000
4020-7-
LP
/6 22.5 5.5
4211-111-9X6GG
105.8 1,099,200 4020-7-
LP
/6 23.5 5.8
4211-124-10X6GG
117.6 1,221,300
4020-7-
LP
/6 24.5 6.0
4211-116-5X8WB
110.9 1,151,700
4020-7-
LP
/6 24.0 6.0
4211-140-6X8WB
133.0 1,382,000 4020-7-
LP
/6 25.0 6.3
4211-163-7X8WB
155.2 1,612,300
4020-7-
LP
/6 27.0 6.5
4211-182-5X10WB
173.5 1,802,400 4020-7-
LP
/6 29.0 7.0
4211-219-6X10WB
208.2 2,162,900 4020-7-
LP
/6 31.0 7.5
4211-256-7X10WB
242.9 2,523,400 4020-7-
LP
/6 33.0 7.8
4211-292-8X10WB
277.6 2,883,900 4020-7-
LP
/6 35.0 8.0
Pilot
1
Main
Air Flow
(scfh)
Input at
10% XSA
(million Btu/hr)
3
LE
Designation
1
Recommended pilot; not included
2
Flame shape may vary based on reaction chamber length and internal profi le
3
Under some conditions, fi ring rate may be up to 15% higher than rated input
