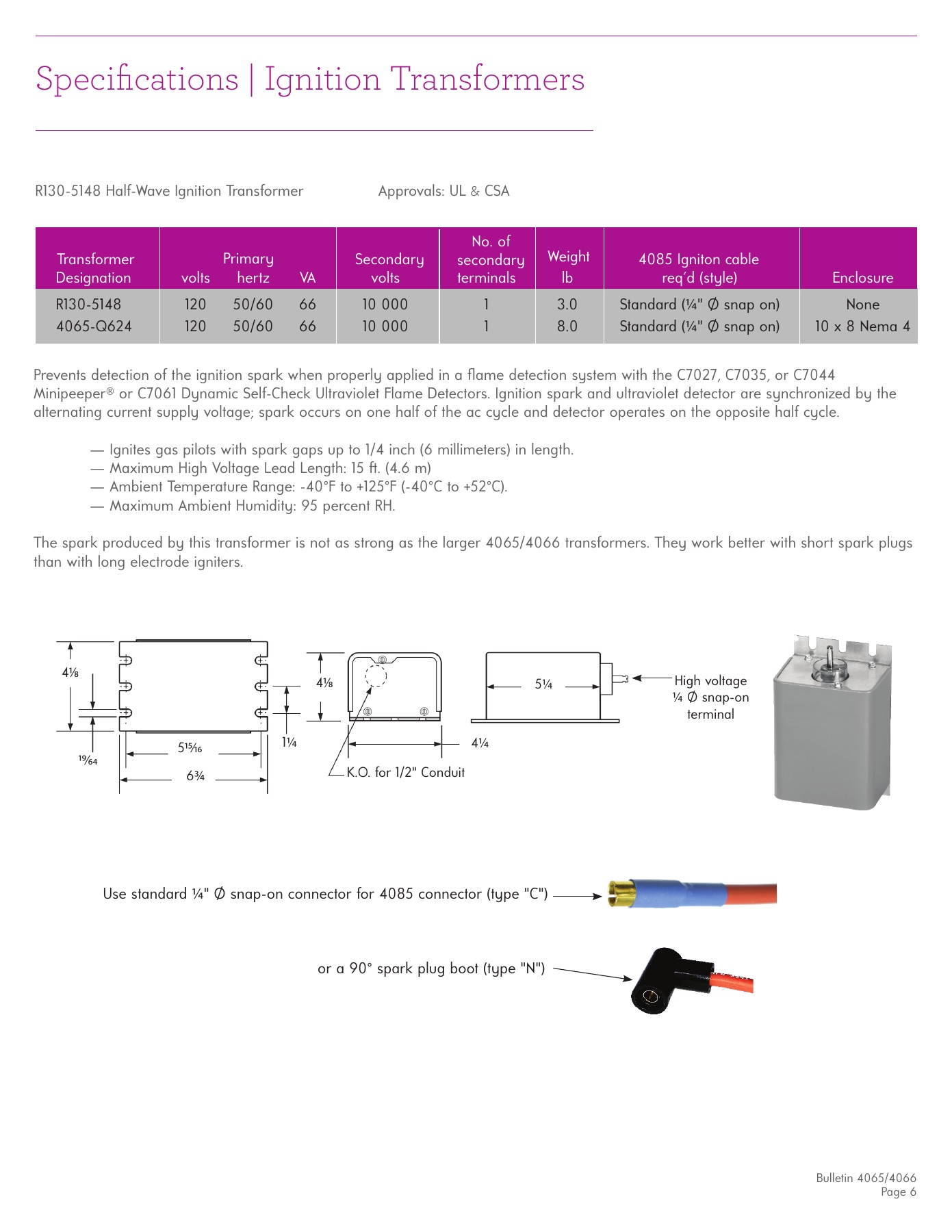

Specifi cations | Ignition Transformers

R130-5148 Half-Wave Ignition Transformer                Approvals: UL

&

 CSA

Bulletin 4065/4066

Page 6

Designation volts

hertz

VA  volts  terminals lb

reqd

(style)

Enclosure



R130-5148

120

50/60

66

10 000

3.0

Standard (

¼

" Ø snap on)

None



4065-Q624

120

50/60

66

10 000

8.0

Standard (

¼

" Ø snap on)

10 x 8 Nema 4

Transformer

Primary

Secondary

Weight

4085 Igniton cable

No. of

secondary

Prevents detection of the ignition spark when properly applied in a fl ame detection system with the C7027, C7035, or C7044
Minipeeper® or C7061 Dynamic Self-Check Ultraviolet Flame Detectors. Ignition spark and ultraviolet detector are synchronized by the
alternating current supply voltage; spark occurs on one half of the ac cycle and detector operates on the opposite half cycle.



— Ignites gas pilots with spark gaps up to 1/4 inch (6 millimeters) in length.



— Maximum High Voltage Lead Length: 15 ft . (4.6 m)



— Ambient Temperature Range: -40°F to +125°F (-40°C to +52°C).



— Maximum Ambient Humidity: 95 percent RH.

The spark produced by this transformer is not as strong as the larger 4065/4066 transformers. They work better with short spark plugs
than with long electrode igniters.

4

1⁄8

19⁄64

5

15⁄16

6

¾

1

¼

K.O. for 1/2" Conduit

4

1⁄8

5

¼

4

¼

High voltage

¼

 Ø snap-on

terminal

Use standard

¼

" Ø snap-on connector for 4085 connector (type "C")

                                              or a 90° spark plug boot (type "N")
