Retraction assembly parts list
Stroke Cylinder
&
Junction
Bellows
Hose
Clamp
Solenoid Assembly
Box Bracket
(2 req’d)
8"
R130-7170 4-53743-1
R320-8238
R120-2211
12"
R130-7171 4-53743-2
R320-8238
R120-2211
16"
R130-7172 4-53743-3
R320-8238
R120-2211
20"
R130-7173 4-53743-4
R320-8239
R120-2211
24"
R130-7174 4-53743-5
R320-8239
R120-2211
Igniter Mounting Hardware
Compression Fitting
Packing Rings
For 0.68"
Ø
Rod
4-53495-1
4-5974-1
Solenoid
Coil
UL/CSA
CE
24 VDC (Classifi ed Area)
R950-12207
R950-12206
120 VAC
R950-12204
R950-12202
240 VAC
R950-12205
R950-12203
Coil Cable Gland
NA
R190-1030
Solenoid Valve
Pressure-Sealing Washer
Speed Control Muffl
er
12MX1 Plug
R950-12201
R970-8751-M-Z
R800-1010
R590-7865-M
Classifi ed Area End Switch
UL/CSA Class 1 Div 2 (ULH)
CE/ATEX (CEH)
24 VDC Prox. Switch
R830-3150
R830-3118
Switch Cable
NA
R830-3140
Cable Lock
NA
R830-3130
Switch Cable Gland
R190-1030
R190-1030
General Purpose End Switch
UL/CSA/CE (ULG)/(CEG)
120-240VAC Switch
R830-3151
Switch Cable Gland
R190-1030
Table 3
1
½
" ANSI Flange
Connection
Part# 4-53379-1
Igniter Compression
Fitting
Packing Rings 3X
(Inside Fitting)
Junction Box Bracket
Switch Cable
Cable Gland
Solenoid Coil
Pressure-sealing Washer
Cylinder
&
Solenoid Assembly
Includes: Speed Control Muffl
ers
Retracted Proximity Switch
(12MX1 Plug w/o Switch)
Retracted Proximity Switch
(12MX1 Plug w/o Switch)
Hose Clamp 2X
Bellows
Speed Control
Muffl
er

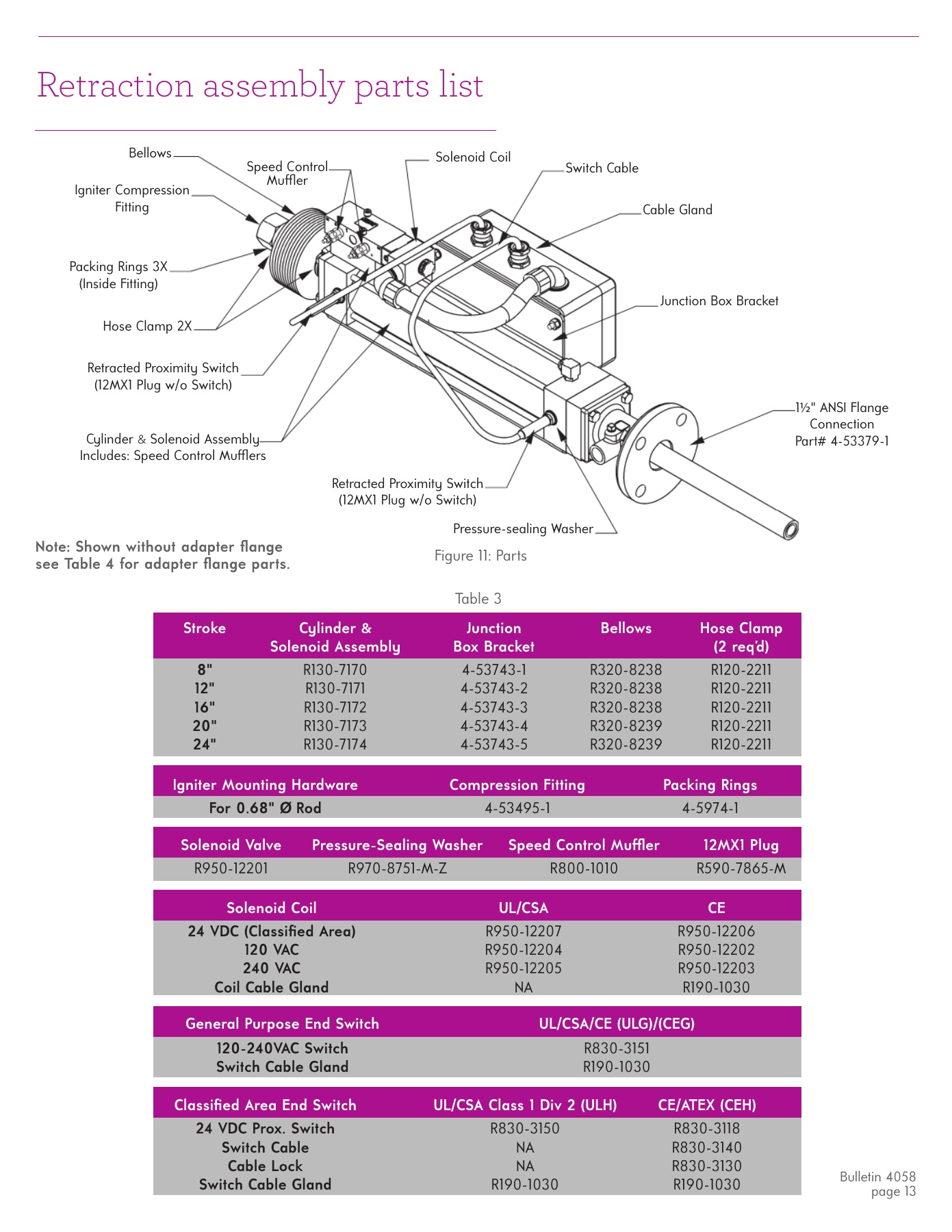

Figure 11: Parts
Bulletin 4058
page 13
Note: Shown without adapter fl ange
see Table 4 for adapter fl ange parts.
