Item
Description
Igniter
Spark Tip Length/Weight
12" (305mm) / 0.50 lbs. (0.23 kg)
Spark Tip Max Temperature
1200°F (649°C)
Igniter Extensions Weight
0.66 lbs. per foot (1.0 kg/M)
Igniter Extensions Available Lengths
16" (406mm) to 60" (1727mm) in 2" (51mm) increments, igniter length = tip
length + extension. Special lengths are available upon request or use
multiple extensions together.
SmartSpark™ Exciter
Size
Approximate 4" (100mm) x 2" (50mm) x 6" (150mm)
Weight
5.25 lbs. (2.39 kg)
Intergral Base Rod Length
4" (100mm)
Input Power
100-240 VAC, 50-60 Hz
Stored Energy
4 Joules Minimum
Spark Rate
15 SPS (sparks-per-second) for 30 second burst, then 1 SPS
Operating Temperature
Operational -40°F (-40°C) to 185°F (85°C)
Input Power Cable
Voltage Rating
UL rated 600V connector, IP66 quick connect
Input Power AC Line L1 (Live)
Power cable brown wire
Input Power AC Line L2 (N)
Power cable blue wire
Input Power Ground Line
Power cable green/yellow wire
Cable Length
8, 12 or 15 feet (2.4, 3.6 or 4.6 M)
Operating Temperature
Operational -40°F (-40°C) to 221°F (105°C)
Item
Description
Retraction Module Weight
20-30 Lbs (9 to 14 kg) Depending on Confi guration
Cylinder
Cylinder Stroke Available
8, 12, 16, 20, 24 inches (200, 305, 406, 508, 610mm)
Pressure to Operate
35-150 psi (240 to 1030 kPa)
Seal Max Temperature
400°F (204°C)
Weight
Solenoid
Inlet Compressed Air Pipe Size
1/4" NPT
Solenoid Ambient Temperature
-4 to 180°F (-20 to 82°C)
Available Coil Voltages
110-140 VAC, 220-240 VAC, 50-60 Hz, 24 VDC
Solenoid Coil Operating Temperature
-4 to 140° (-20 to 60°C)
Cooling Air
Air Inlet Pipe Size
1/2" NPT
Recommended Air Flow
500 scfh (14.2 Nm3/Hr)
Air Pressure Tap Pipe Size
1/8" NPT
Recommended Air Pressure
6"w.c. (1.5 kPa)
Proximity Switches
General Purpose UL/CSA/CE
24VDC/120-240VAC, Temperature -13 to +158°F (-25 to +70°C)
R830-3151
Allen Bradley 871TM-B3N12-A2
Classifi ed Area UL/CSA Class I Div 2
24VDC, Temperature -13 to +158°F (-25 to +70°C)
R830-3150
Allen Bradley 871TM-DR2NE12-A2
Classifi ed Area CE/ATEX
24VDC (10-30VDC) , Temperature -40 to +212°F (-40 to +100°C)
R830-3118
Turck B14U-EM12WD-AP6X-H1141/3GD (M1634851)

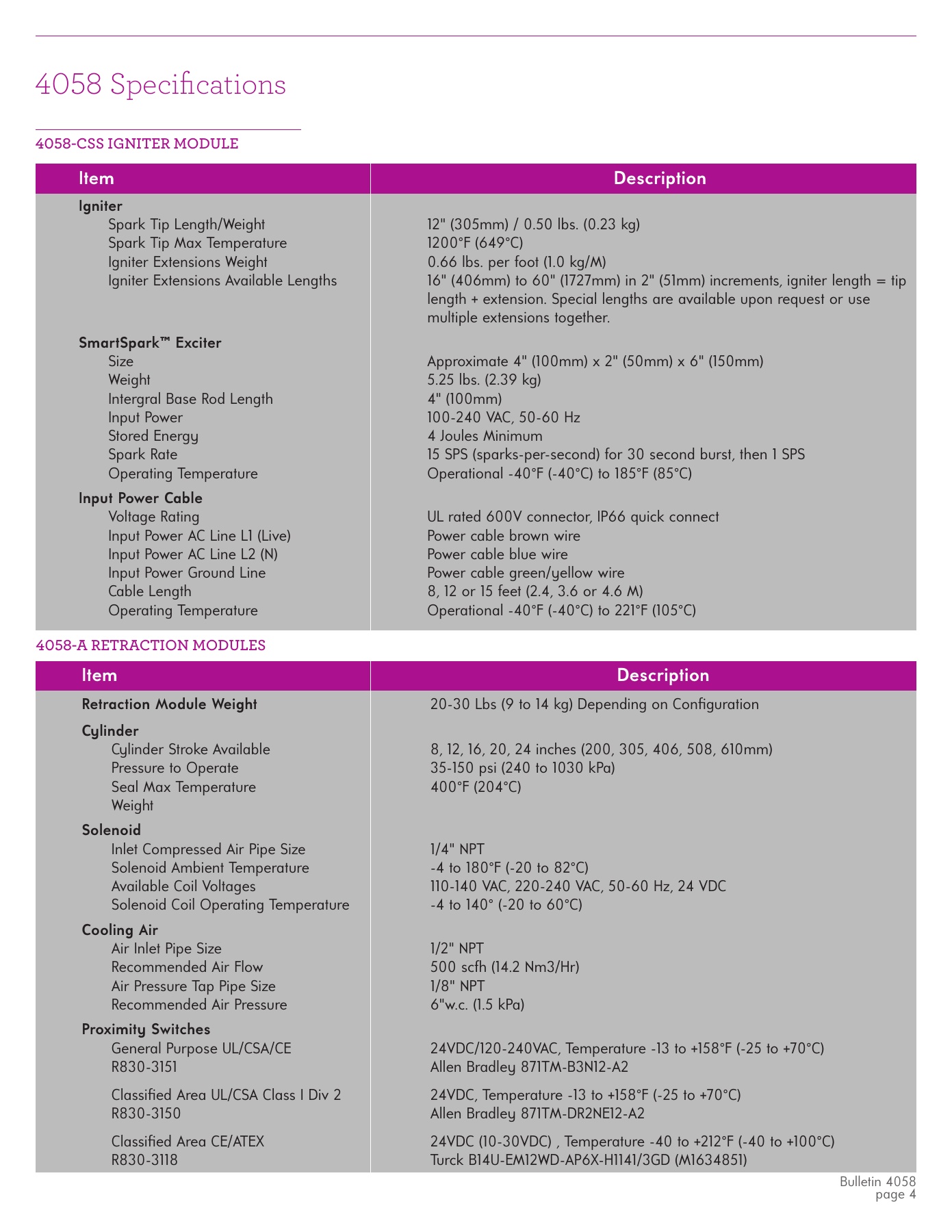

4058 Specifi cations
4058-A RETRACTION MODULES
4058-CSS IGNITER MODULE
Bulletin 4058
page 4
