Bulletin 4055

Page 6

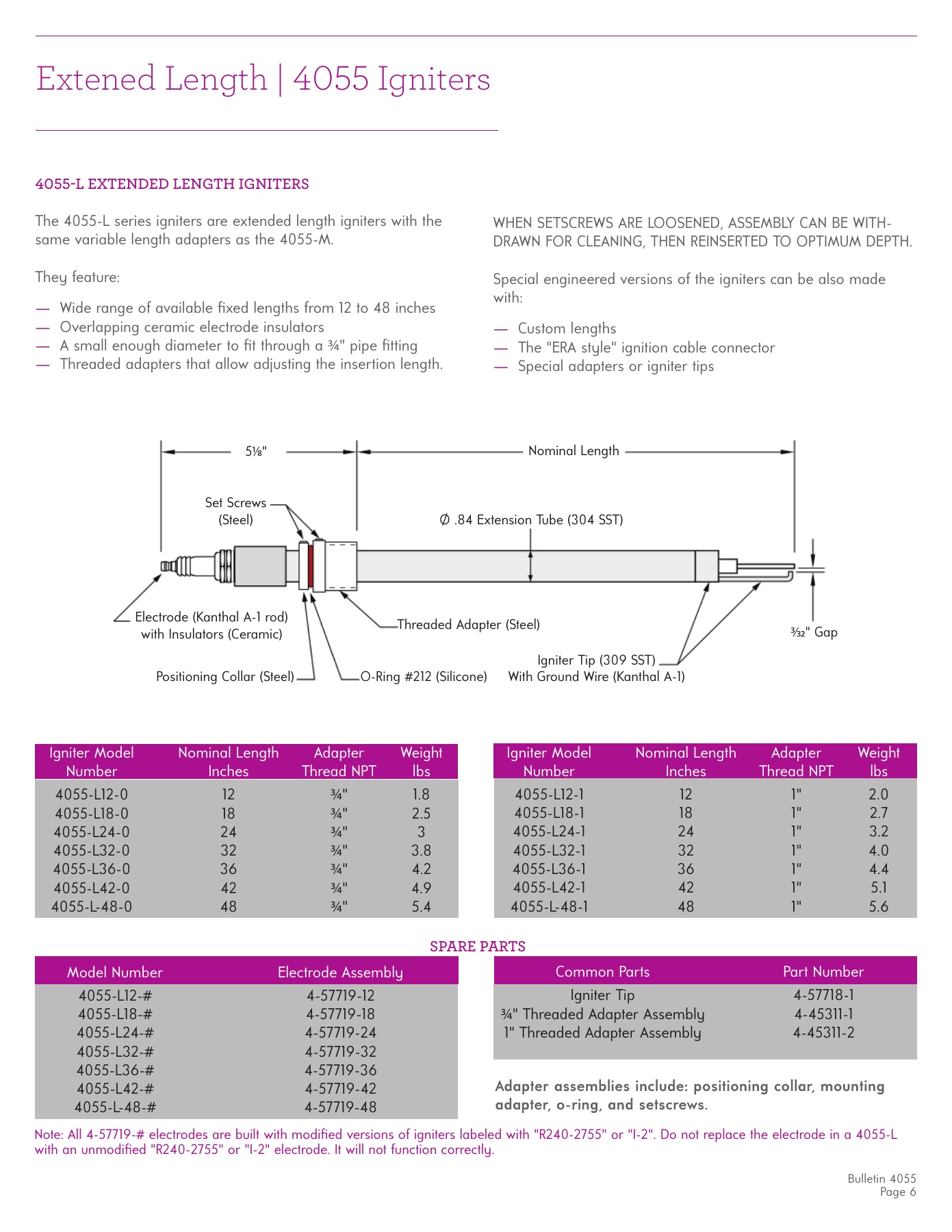

4055-L EXTENDED LENGTH IGNITERS

The 4055-L series igniters are extended length igniters with the
same variable length adapters as the 4055-M.

They feature:

  Wide range of available fi xed lengths from 12 to 48 inches

  Overlapping ceramic electrode insulators

  A small enough diameter to fi t through a

¾

" pipe fi tting

  Threaded adapters that allow adjusting the insertion length.

5

1⁄8

"

Nominal Length

Set Screws

(Steel)

Ø .84 Extension Tube (304 SST)



Igniter Tip (309 SST)

With Ground Wire (Kanthal A-1)

Threaded Adapter (Steel)

O-Ring #212 (Silicone)

Positioning Collar (Steel)

Electrode (Kanthal A-1 rod)

with Insulators (Ceramic)

3⁄32

" Gap

Note: All 4-57719-# electrodes are built with modifi ed versions of igniters labeled with "R240-2755" or "I-2". Do not replace the electrode in a 4055-L
with an unmodifi ed "R240-2755" or "I-2" electrode. It will not function correctly.



Igniter Model

Nominal Length

Adapter

Weight

 Number

Inches

Thread

NPT  lbs

 4055-L12-0

12

¾

" 1.8

 4055-L18-0

18

¾

" 2.5

 4055-L24-0

24

¾

" 3

 4055-L32-0

32

¾

" 3.8

 4055-L36-0

36

¾

" 4.2

 4055-L42-0

42

¾

" 4.9

 4055-L-48-0

48

¾

" 5.4



Model Number

Electrode Assembly

 4055-L12-#

4-57719-12

 4055-L18-#

4-57719-18

 4055-L24-#

4-57719-24

 4055-L32-#

4-57719-32

 4055-L36-#

4-57719-36

 4055-L42-#

4-57719-42

 4055-L-48-#

4-57719-48



Common Parts

Part Number

 Igniter

Tip

4-57718-1



¾

" Threaded Adapter Assembly

4-45311-1

  1" Threaded Adapter Assembly

4-45311-2



Igniter Model

Nominal Length

Adapter

Weight

 Number

Inches

Thread

NPT  lbs

 4055-L12-1

12

1"

2.0

 4055-L18-1

18

1"

2.7

 4055-L24-1

24

1"

3.2

 4055-L32-1

32

1"

4.0

 4055-L36-1

36

1"

4.4

 4055-L42-1

42

1"

5.1

 4055-L-48-1

48

1"

5.6

SPARE PARTS

WHEN SETSCREWS ARE LOOSENED, ASSEMBLY CAN BE WITH-
DRAWN FOR CLEANING, THEN REINSERTED TO OPTIMUM DEPTH.

Special engineered versions of the igniters can be also made
with:

  Custom lengths

  The "ERA style" ignition cable connector

  Special adapters or igniter tips

Adapter assemblies include: positioning collar, mounting
adapter, o-ring, and setscrews.
