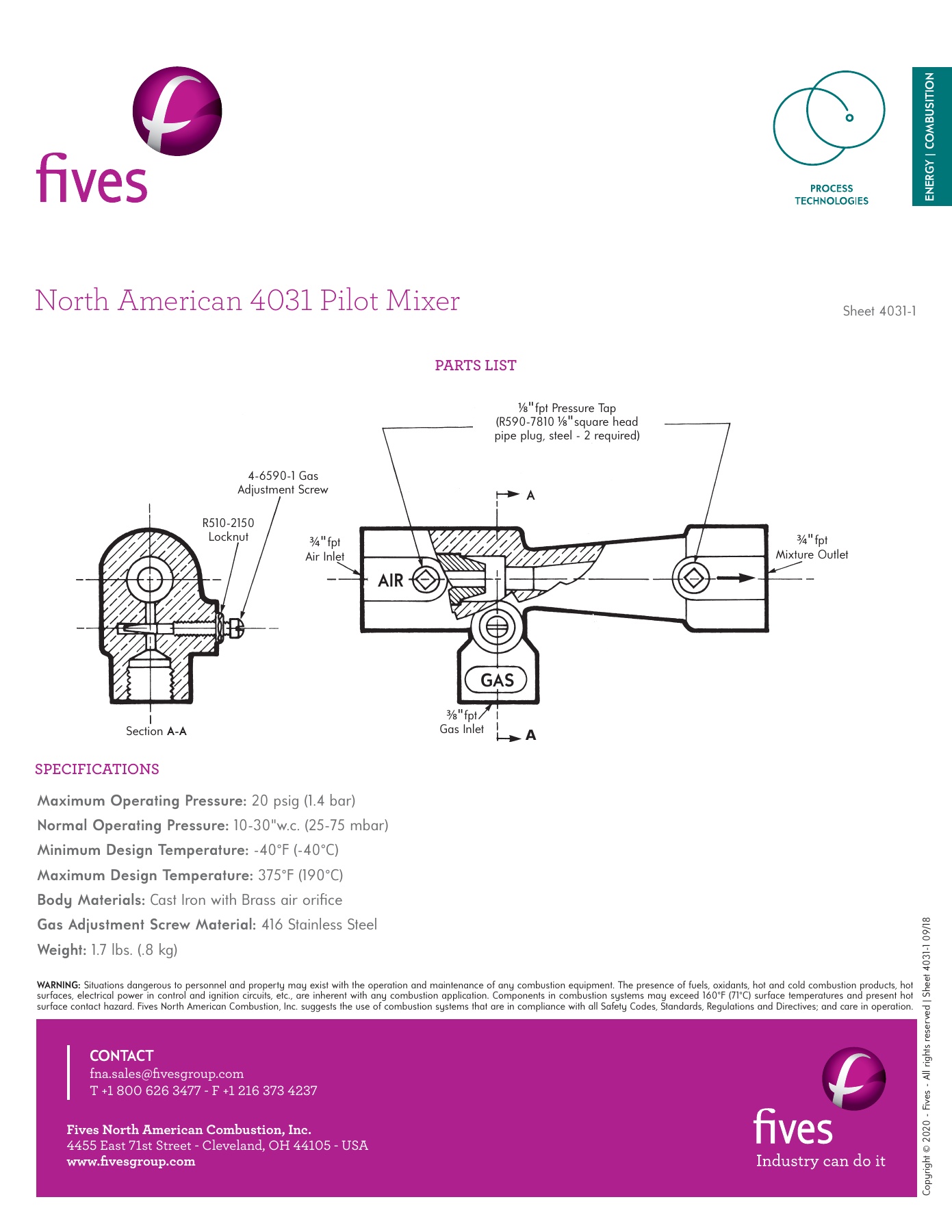

North American 4031 Pilot Mixer

Sheet 4031-1

GAS

AIR

3⁄8

"



fpt

Gas Inlet

A

¾

fpt

Air Inlet

R510-2150

Locknut

A

4-6590-1 Gas

Adjustment Screw

¾

fpt

Mixture Outlet

Section

A-A

1⁄8

fpt Pressure Tap

(R590-7810



1⁄8

"



square head

pipe plug, steel - 2 required)

PARTS LIST

Cop

yr

igh

t © 2020 - F

iv

es - All r

igh

ts r

eser

ved | Shee

t 4031-1 09/18

WARNING:

Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot

surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.

Maximum Operating Pressure:

 20 psig (1.4 bar)

Normal Operating Pressure:

 10-30"w.c. (25-75 mbar)

Minimum Design Temperature:

 -40°F (-40°C)

Maximum Design Temperature:

 375°F (190°C)

Body Materials:

 Cast Iron with Brass air orifi ce

Gas Adjustment Screw Material:

 416 Stainless Steel

Weight:

 1.7 lbs. (.8 kg)

SPECIFICATIONS

ENERG

Y | C

OMBUSITION

Fives North American Combustion, Inc.

4455 East 71st Street - Cleveland, OH 44105 - USA

www.fi vesgroup.com

CONTACT

fna.sales@fi vesgroup.com
T +1 800 626 3477 - F +1 216 373 4237
