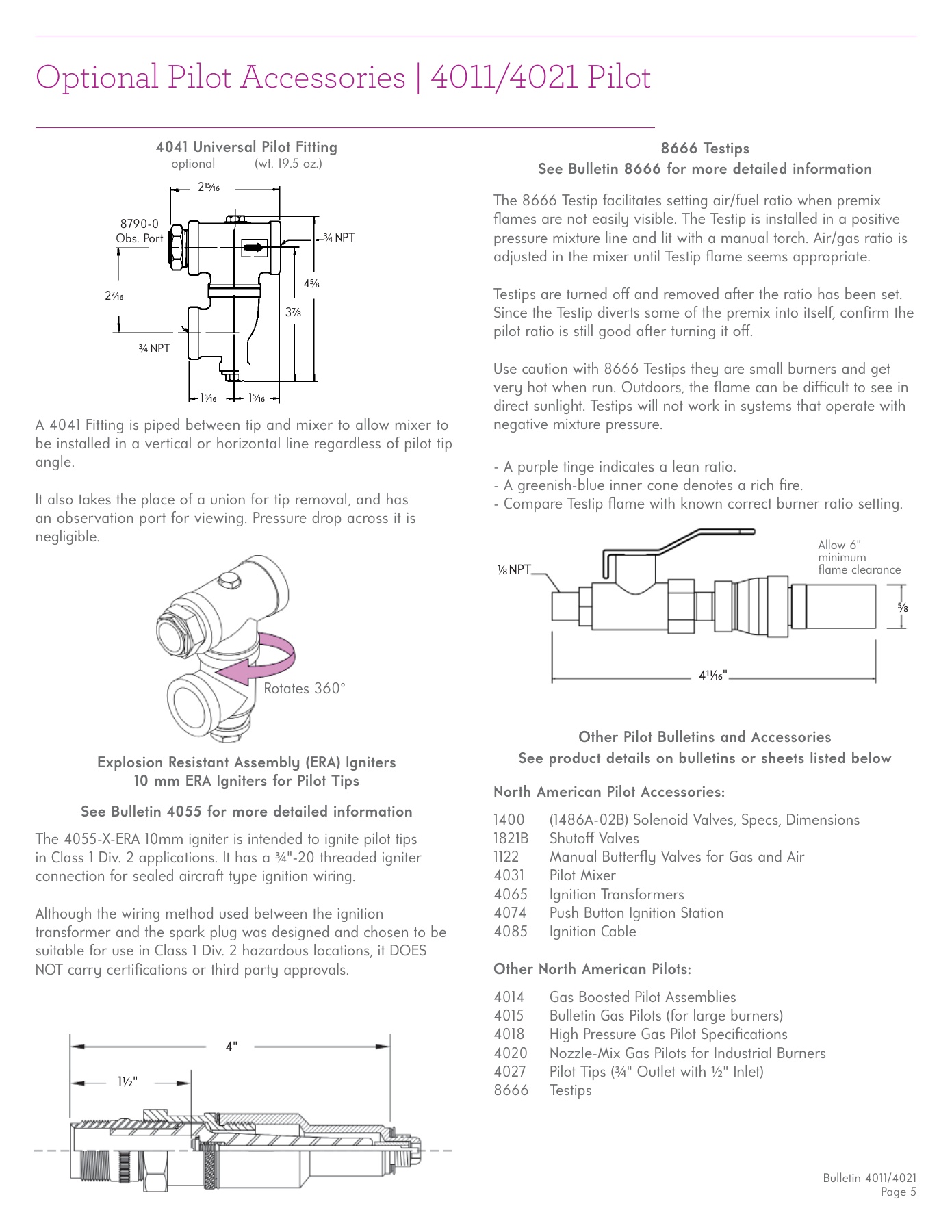

Bulletin 4011/4021

Page 5

4041 Universal Pilot Fitting

optional          (wt. 19.5 oz.)

A 4041 Fitting is piped between tip and mixer to allow mixer to
be installed in a vertical or horizontal line regardless of pilot tip
angle.

It also takes the place of a union for tip removal, and has
an observation port for viewing. Pressure drop across it is
negligible

.

4

5⁄8

8790-0

Obs. Port

¾



NPT

3

7⁄8

1

5⁄16

1

5⁄16

¾



NPT

2

7⁄16

2

15⁄16

The 4055-X-ERA 10mm igniter is intended to ignite pilot tips
in Class 1 Div. 2 applications. It has a

¾

"-20 threaded igniter

connection for sealed aircraft  type ignition wiring.

Although the wiring method used between the ignition
transformer and the spark plug was designed and chosen to be
suitable for use in Class 1 Div. 2 hazardous locations, it DO ES
NOT carry certifi cations or third party approvals.

The 8666 Testip facilitates setting air/fuel ratio when premix
fl ames are not easily visible. The Testip is installed in a positive
pressure mixture line and lit with a manual torch. Air/gas ratio is
adjusted in the mixer until Testip fl ame seems appropriate.

Testips are turned off  and removed aft er the ratio has been set.
Since the Testip diverts some of the premix into itself, confi rm the
pilot ratio is still good aft er turning it off .

Use caution with 8666 Testips they are small burners and get
very hot when run. Outdoors, the fl ame can be diffi

  cult to see in

direct sunlight. Testips will not work in systems that operate with
negative mixture pressure.

Explosion Resistant Assembly (ERA) Igniters

10 mm ERA Igniters for Pilot Tips

See Bulletin 4055 for more detailed information

See Bulletin 8666 for more detailed information

See product details on bulletins or sheets listed below

8666 Testips

Other Pilot Bulletins and Accessories

4"

1

½

"

- A purple tinge indicates a lean ratio.
- A greenish-blue inner cone denotes a rich fi re.
- Compare Testip fl ame with known correct burner ratio setting.

Rotates 360°

4

11⁄16

"

1⁄8

NPT

5⁄8

Allow 6"

minimum

fl ame clearance

North American Pilot Accessories:

1400

(1486A-02B) Solenoid Valves, Specs, Dimensions

1821B Shutoff  Valves
1122 Manual

Butterfl y Valves for Gas and Air

4031 Pilot

Mixer

4065 Ignition

Transformers

4074

Push Button Ignition Station

4085 Ignition

Cable

Other North American Pilots:

4014

Gas Boosted Pilot Assemblies

4015

Bulletin Gas Pilots (for large burners)

4018

High Pressure Gas Pilot Specifi cations

4020

Nozzle-Mix Gas Pilots for Industrial Burners

4027

Pilot Tips (

¾

" Outlet with

½

" Inlet)

8666 Testips
