† Gas adjustment for 3065-9 Mixer is an 1122-7-F Limiting Orifi ce Gas Valve -- mixer price includes valve. 3065-9 price dœ s not include companion fl anges.
‡ Included in Gas Cartridge Assembly, or can be ordered separately.







Mixer designation



3065-0

3065-1

3065-2

3065-3

3065-4

3065-5

3065-6

3065-7

3065-8

3065-9

Part Name

3065-0-K

3065-1-K

3065-2-K

3065-3-K

3065-4-K

3065-5-K

3065-6-K

3065-7-K

3065-8-K  3065-9-K

Body (3065)

4-1452-2

4-0762-2

4-0787-2

4-0789-3

4-0791-3

4-0793-3

4-0796-4

4-1147-1

4-1137-4

4-2305-1

Body (3065-  -S)

—

—

—

4-0789-4

4-0791-4

4-0793-4

4-0796-5

4-1147-2

4-1137-2

—



Displacement Rod Plug Gasket

—

—

—

—

—

—

4-31531-1

4-31520-1

4-31530-3

4-32909-1

Flange/Air Inlet (Sq.)

—

—

—

—

—

—

—

2-2310-7

2-2310-8

—

Gasket/Air Inlet (Sq.) 2 reqd

—

—

—

—

—

—

—

4-31521-3

4-31521-4

—

Flange/Mixture

(Round) — — —  —  —  —  — 2-0855-1

2-0471-1

—

Gasket/Mixture

(Round) — — —  —  —  —  —

4-31522-2

4-31522-3

—

Gas Cartridge Assembly





















     (3065)

4-6062-0

4-6062-1

4-6062-2

4-6062-3

4-6062-4

4-6062-5

4-6062-6

4-6062-7

4-6062-8

†

     (3065-  -K)

4-6065-0K

4-6065-1K

4-6065-2K

4-6065-3K

4-6065-4K

4-6065-5K

4-6065-6K

4-6065-7K

4-6065-8K

—

     O-Ring ‡ (Viton)

R520-4166-V  R520-4207-V   R520-4428-V

R520-4428-V

R520-4430-V

R520-4309-V

R520-4436-V

R520-4440-V

R520-4447-V —

     Cap‡  (3065)

4-6085-1

4-6086-1

4-6086-1

4-6086-1

4-6086-1

4-6086-1

4-6087-1

4-6087-1

4-6087-1

—

     Cap‡  (3065- -K)

4-6085-2

4-6086-2

4-6086-2

4-6086-2

4-6086-2

4-6086-2

4-6087-2

4-60872

4-6087-2

—

Gas

Connection

— — —  —  —  —  — 4-1148-3

4-1145-3

—

Gas Connection Gasket

—

—

—

—

—

—

—

4-31523-1

4-31523-2

4-32909-2

Mixing Chamber (3065)

4-0910-1

4-0759-1

4-0788-1

4-0790-1

4-0792-1

4-0794-1

4-0797-1

4-1144-3

4-1138-5

4-1886-1

Mixing Chamber (3065-  -S)

—

—

—

4-0790-2

4-0792-2

4-0794-2

4-0797-2

4-1144-4

4-1138-4

—

Mixing Chamber Gasket

—

—

—

—

—

—

—

4-31519-1

4-31529-1

4-31557-1

Orifi ce Plate (3065)

—

—

—

—

—

—

—

4-1151-1

4-1154-2

—

Orifi ce Plate (3065- -S)

—

—

—

—

—

—

—

4-1154-3

—

—

Observation port (-OBS)

—

8790-01

8790-01

8790-01

8790-01

8790-01

8790-01

R530-2028

R530-2028

—

Observation port holder (-OBS)

—











4-54573-1

4-54573-2

4-54573-3

—

Displacement Rod and



Order by specifying, "3065-(code size)-(rod size RA)."

Example

: 3065-1-5RA -- Rod Size #5. Rod size is its diameter

Support Nut Assembly



in thirty-seconds of an inch. (For the nut only, specify 3065-1-0RA), #16 (

½

") and larger "rods" are tubes. Rods are









not available without nuts. See below for rod sizes available for each size mixer.

AIR INLET FLANGE and gaskets (2 reqd)

for 3065-7 and -8

  Rod Support

Plug for

3065-0 thru 3065-5  

Aspirator Mixers 

Body

Mixing Chamber

MIXTURE OUTLET FLANGE

and gasket for 3065-7 and -8

Solid Displacement

Rod

Orifi ce Plate

GAS CONNECTION
for 3065-7 and -8

Mixing Chamber Gasket

Gas Connection

Gasket

Stuffi

  ng

Box Cap

Gas Cartridge Assembly

(assembly of shaded parts)

ASSEMBLIES OF RODS
for 3065-6, thru 3065 -9 ASPIRATOR MIXERS

Tubular

Displacement

Rod

Rod

Support

Plug

Solid

Displacement

Rod

Rod

Support

Plug

3065 or -S Rod Only Part Numbers = 3065-      -     RA

For use in mixer size (0 -9_)

(Mixer not included)

Rod sizes (0 - 80 see Table 4 on Sheet 3065-2_dims-pl)

  Table 8. 3065, 3065-  -S and 3065-  -K (All Iron/Steel) PARTS LIST

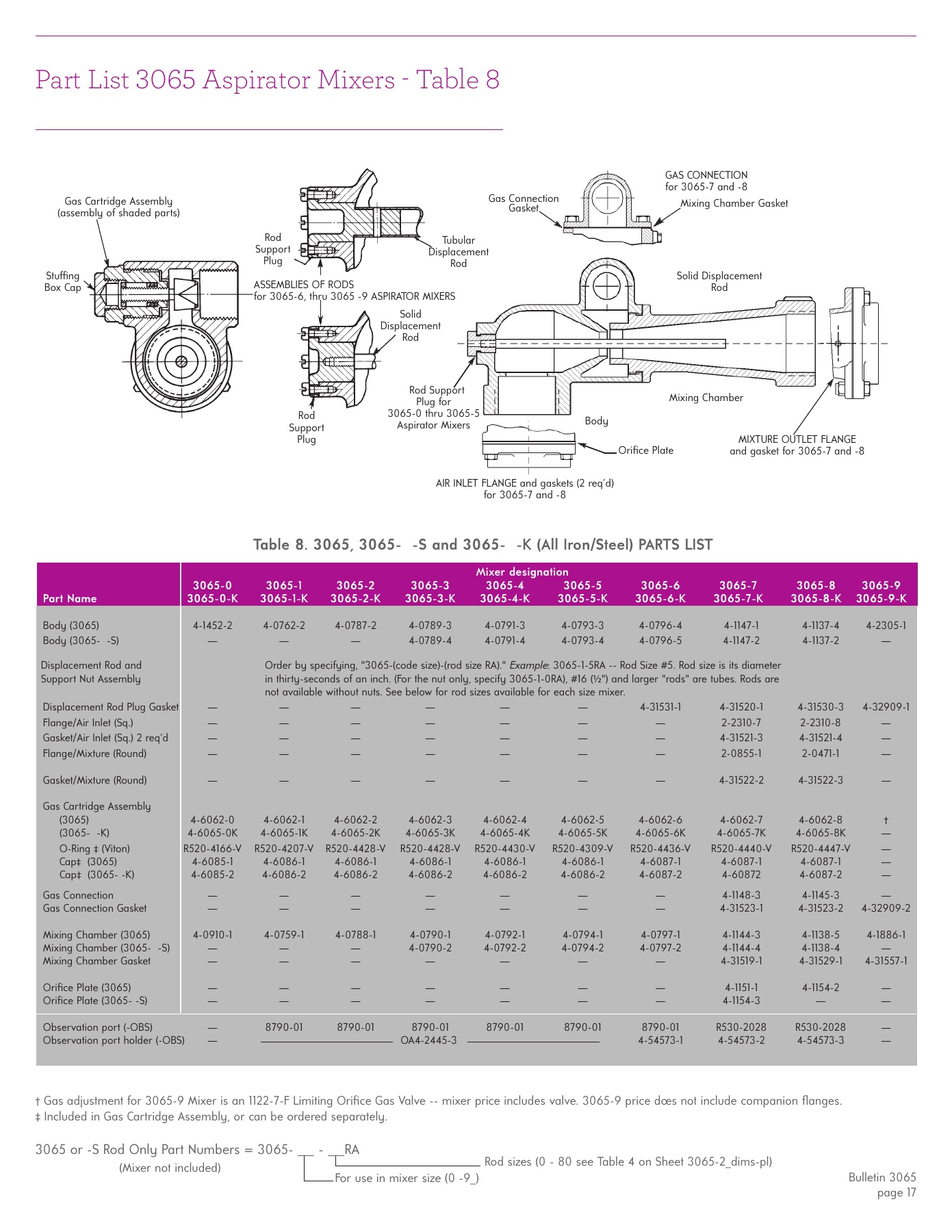

Part List 3065 Aspirator Mixers - Table 8

OA4-2445-3

Bulletin 3065

page 17
