Rod

Rod Area

Rod

Rod Area



Size

Square Inches

Size

Square Inches



0

 0.000

24

 0.442



4

 0.012

26

 0.518



5

 0.019

28

 0.601



6

 0.028

30

 0.690



7

 0.038

32

 0.785



8

 0.049

34

 0.887



9

 0.062

36

 0.944



10

 0.077

38

 1.108



11

 0.093

40

 1.227



12

 0.110

44

 1.485



13

 0.130

48

 1.767



14

 0.150

52

 2.074



15

 0.173

56

 2.405



16

 0.196

60

 2.761



17

 0.222

64

 3.142



18

 0.249

68

 3.547



20

 0.307

72

 3.976



22

 0.371

80

 4.909



Mixer

Throat Dia.

Throat Area

 Size

Inches

Sq.

Inches



4037 #

 0.156

0.019



4031 #

 0.209  0.034



3065-0

 0.375

0.110



3065-1

 0.438  0.150



3065-2

 0.594  0.277



3065-3

 0.719

0.406



3065-3-S

 0.844

0.559



3065-4

 0.906  0.645



3065-4-S

 1.000

0.785



3065-5

 1.063  0.887



3065-5-S

 1.250

1.227



3065-6

 1.281

1.289



3065-6-S

 1.594

1.995



3065-7

 1.750  2.405



3065-7-S

 2.188

3.758



3065-8

 2.750

5.940



3065-8-S

 3.313

8.618



3065-9

 3.688  10.680

Table 5. Mixer Throat Dimensions

Table 7. Available Rod Sizes

Mixer Orifi ce Area = Throat Area - Rod Area

Table 6. Mixer Rod Dimensions

# The 4031 and 4037 are small mixers commonly used for small premix pilot tips.



3065-0

 0 5 6 7 8 9



3065-1

 0*

4 5 6 7 8 9

10

11



3065-2

 0*

4 5 6 8 9 10

11

12

13



3065-3

 0*

4 5 6 7 8 9

10

11 12 13 14

15

16 17 18







3065-4

 0*

5 6 7 8 10 11

12

13

14 15 16

17

18



3065-5

 0*

6 8 9 10

12

13

14

15

16 17 18



3065-6

 0*

6 7 9 10 12 13

14

15

16 18 20

22

24



3065-7

 0*

4 10 12 14

15

16

18

20

24

26 28

30

32

34*

36*

38*



3065-8

 0*

15 16

20

24

28

32

36

40*

44*

48*

52*

56*

60*

64*

68*

72*



3065-9

 0

24

32

40

48

56

64

72

80

Mixer

Rod Part Numbers = 3065-  -  RA

Rod Sizes #15 and smaller are solid, #16 (1/2"Ø) and larger are tubular.
The "0" size is a plug only.
*These rods are available with a centerline observation port.
To order a mixer with an observation port add "OP" to the part number.

Example: 3065-7-S36OP

To order a Rod only with observation port ad "OP" to the part number.

Example: 3065-8-68RAOP

Rod Size in

1⁄32

 inch

Throat Dimensions

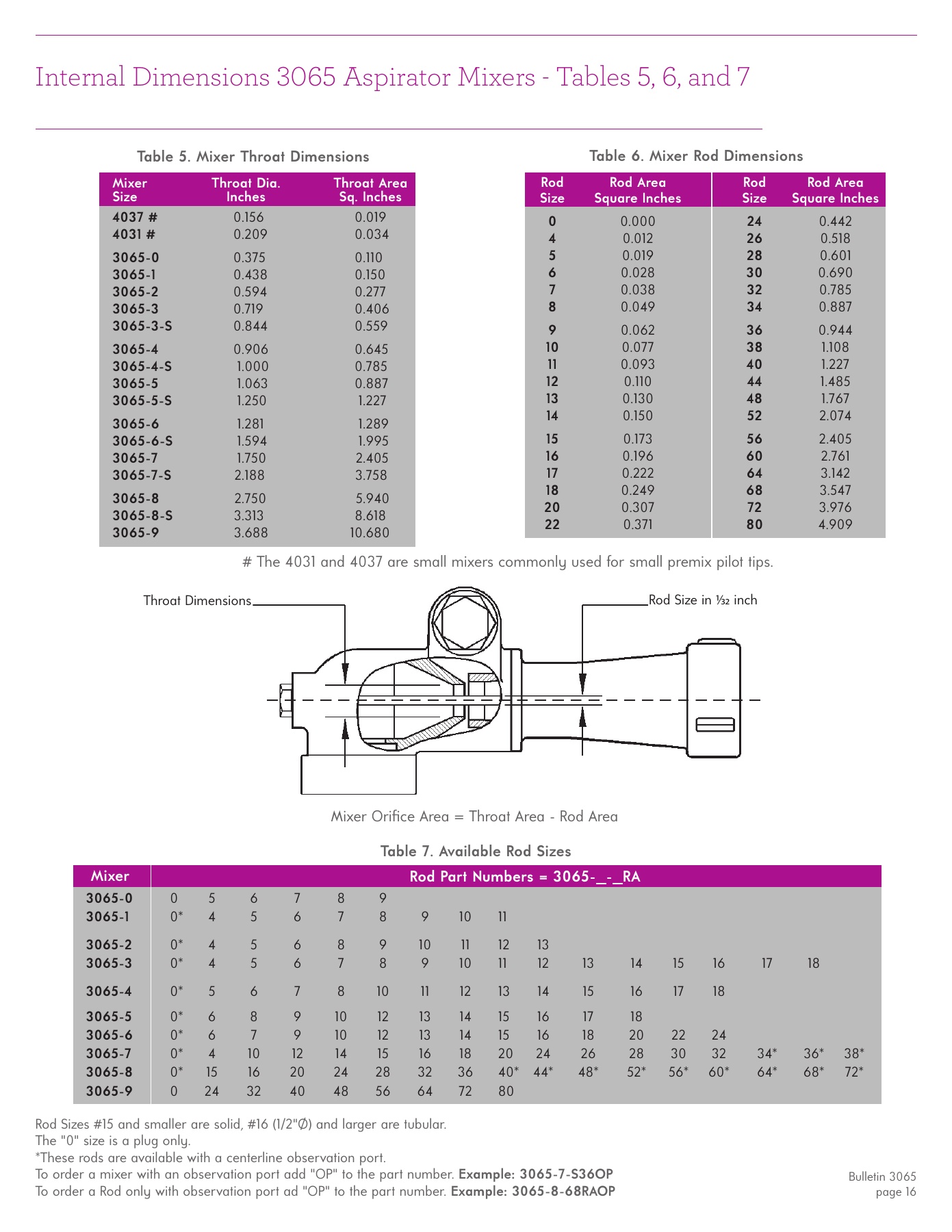

Internal Dimensions 3065 Aspirator Mixers - Tables 5, 6, and 7

Bulletin 3065

page 16
