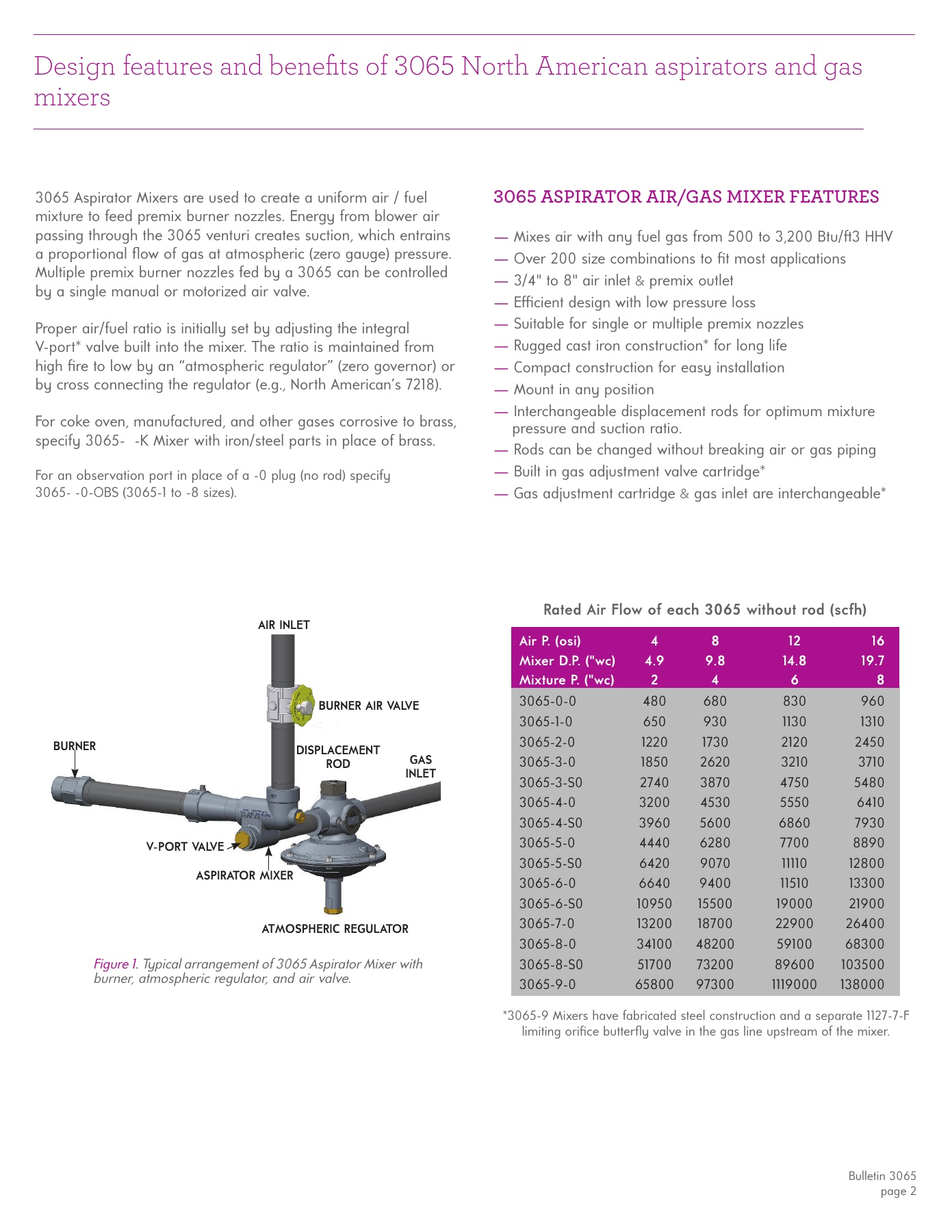

Design features and benefi ts of 3065 North American aspirators and gas
mixers

3065 Aspirator Mixers are used to create a uniform air / fuel
mixture to feed premix burner nozzles. Energy from blower air
passing through the 3065 venturi creates suction, which entrains
a proportional fl ow of gas at atmospheric (zero gauge) pressure.
Multiple premix burner nozzles fed by a 3065 can be controlled
by a single manual or motorized air valve.

Proper air/fuel ratio is initially set by adjusting the integral
V-port* valve built into the mixer. The ratio is maintained from
high fi re to low by an “atmospheric regulator” (zero governor) or
by cross connecting the regulator (e.g., North American’s 7218).

For coke oven, manufactured, and other gases corrosive to brass,
specify 3065-  -K Mixer with iron/steel parts in place of brass.

For an observation port in place of a -0 plug (no rod) specify
3065- -0-OBS (3065-1 to -8 sizes).

3065 ASPIRATOR AIR/GAS MIXER FEATURES

Mixes air with any fuel gas from 500 to 3,200 Btu/ft 3 HHV

Over 200 size combinations to fi t most applications

3/4" to 8" air inlet

&

 premix outlet

Effi

  cient design with low pressure loss

Suitable for single or multiple premix nozzles

Rugged cast iron construction* for long life

Compact construction for easy installation

Mount in any position

Interchangeable displacement rods for optimum mixture

    pressure and suction ratio.

Rods can be changed without breaking air or gas piping

Built in gas adjustment valve cartridge*

Gas adjustment cartridge

&

 gas inlet are interchangeable*

AIR INLET

BURNER AIR VALVE

GAS

INLET

V-PORT VALVE

ASPIRATOR MIXER

DISPLACEMENT

ROD

BURNER

ATMOSPHERIC REGULATOR

Figure 1.

Typical arrangement of 3065 Aspirator Mixer with

burner, atmospheric regulator, and air valve.

*3065-9 Mixers have fabricated steel construction and a separate 1127-7-F

limiting orifi ce butterfl y valve in the gas line upstream of the mixer.

Rated Air Flow of each 3065 without rod (scfh)

  Air P. (osi)

12

16

  Mixer D.P. ("wc)

4.9

9.8

14.8

19.7

  Mixture P. ("wc)

8

 3065-0-0

480

680

830

960

 3065-1-0

650

930

1130

1310

 3065-2-0

1220

1730

2120

2450

 3065-3-0

1850

2620

3210

3710

 3065-3-S0

2740

3870

4750

5480

 3065-4-0

3200

4530

5550

6410

 3065-4-S0

3960

5600

6860

7930

 3065-5-0

4440

6280

7700

8890

 3065-5-S0

6420

9070

11110

12800

 3065-6-0

6640

9400

11510

13300

 3065-6-S0

10950

15500

19000

21900

 3065-7-0

13200

18700

22900

26400

 3065-8-0

34100  48200

59100

68300

 3065-8-S0

51700

73200

89600

103500

 3065-9-0

65800  97300

1119000  138000

Bulletin 3065

page 2
