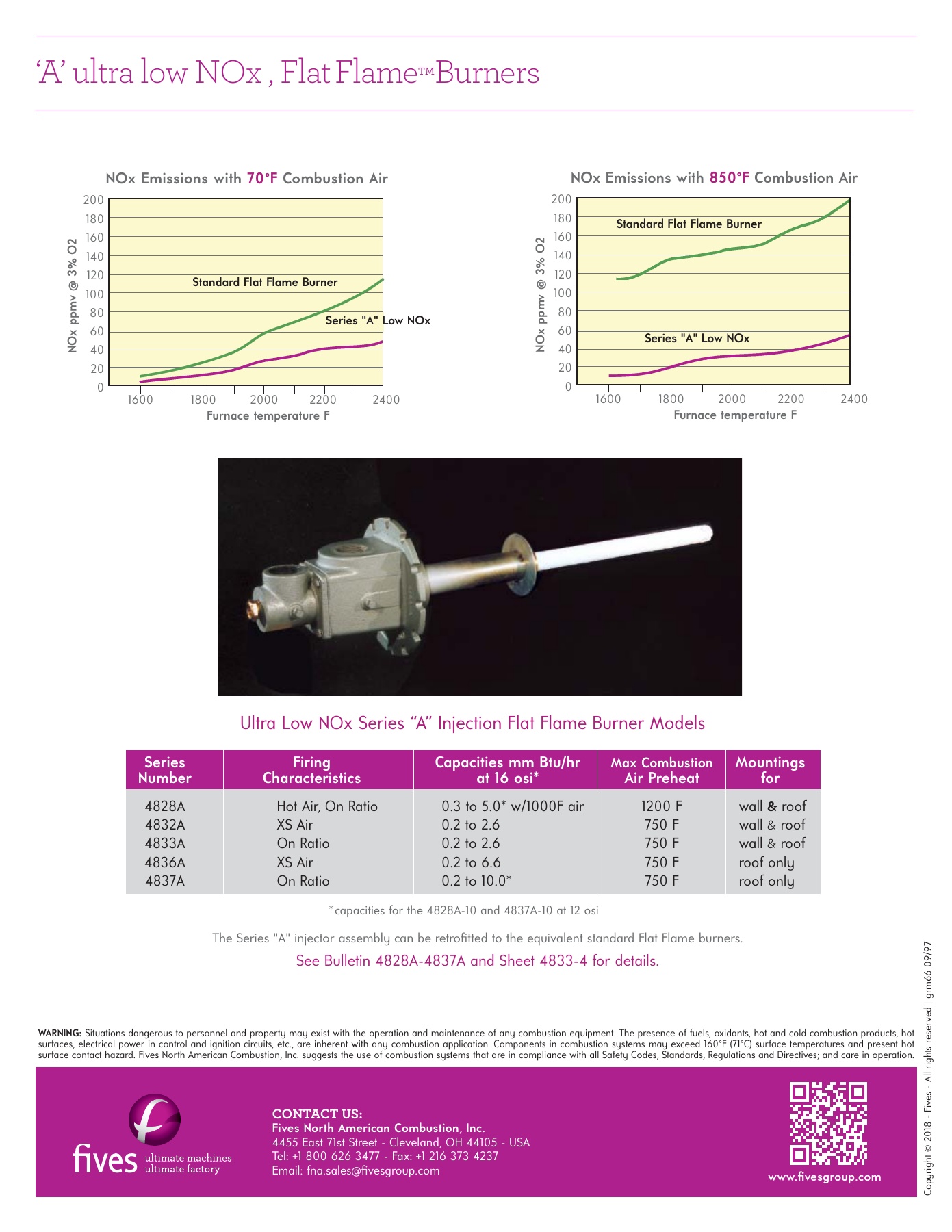

Ultra Low NOx Series “A” Injection Flat Flame Burner Models



Series

Firing

Capacities mm Btu/hr

Max Combustion

 Mountings



Number

Characteristics

at 16 osi*

Air Preheat

for



4828A

Hot Air, On Ratio

0.3 to 5.0* w/1000F air

1200 F

wall

&

 roof





4832A

XS Air

0.2 to 2.6

750 F

wall

&

 roof





4833A

On Ratio

0.2 to 2.6

750 F

wall

&

 roof





4836A

XS Air

0.2 to 6.6

750 F

roof only





4837A

On Ratio

0.2 to 10.0*

750 F

roof only

‘A’ ultra low NOx , FlatFlame

Burners

Cop

yr

igh

t © 2018 - F

iv

es - All r

igh

ts r

eser

ved | gr

m66 09/97

NOx Emissions with



70°F



Combustion Air

200

180
160
140

120

100

80
60
40

20

0

N

Ox ppm

v @ 3% O2

 1600

1800

2000

2200

2400

Furnace temperature F

Series "A" Low NOx

Standard Flat Flame Burner

200

180
160
140

120

100

80
60
40

20

0

N

Ox ppm

v @ 3% O2

 1600

1800

2000

2200

2400

Furnace temperature F

NOx Emissions with



850°F



Combustion Air

Standard Flat Flame Burner

Series "A" Low NOx

WARNING:

Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot

surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.

CONTACT US:

Fives North American Combustion, Inc.

4455 East 71st Street - Cleveland, OH 44105 - USA
Tel: +1 800 626 3477 - Fax: +1 216 373 4237
Email: fna.sales@fi vesgroup.com

www.fi vesgroup.com

                                   * capacities for the 4828A-10 and 4837A-10 at 12 osi













The Series "A" injector assembly can be retrofi tted to the equivalent standard Flat Flame burners.

See Bulletin 4828A-4837A and Sheet 4833-4 for details.
